Owon XSA1075-TG spectrum analyser
Details
Click here to find an alternative for this product.

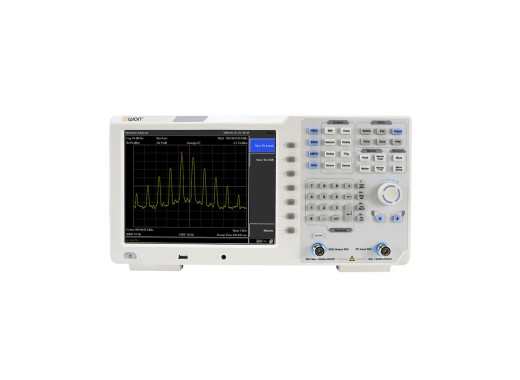

The Owon XSA1075-TG spectrum analyser features a notably large bandwidth of 7.5 GHz at this pricepoint, in addition to a tracking generator. The low noise level (up to -160 dBm/Hz with the pre-amplifier turned on) and the included measurement functions together allow for advanced and precise measurements to be carried out, which can easily be read off of the 10.4" LCD display. The tracking generator is able to produce an output frequency of 100 kHz to 7.5 GHz, with an output power of -40 dBm to 0 dBm. All Owon XSA1000TG series spectrum analysers offer very similar performance, with their main distinctive aspect being the frequency range they can operate in. Additionally, they all feature a Pass/Fail function, EMI pre-compliance test function and waterfall plot function by default.
Model overview
| Model | XSA1015-TG | XSA1032-TG | XSA1036-TG | XSA1075-TG |
|---|---|---|---|---|
| Bandwidth | 9 kHz - 1.5 GHz | 9 kHz - 3.2 GHz | 9 kHz - 3.6 GHz | 9 kHz - 7.5 GHz |
| Tracking generator | 100 kHz - 1.5 GHz | 100 kHz - 3.2 GHz | 100 kHz - 3.6 GHz | 100 kHz - 7.5 GHz |
| Temperature stability | < 2.5 ppm (15 ℃ to 35 ℃) | < 2.5 ppm (15 ℃ to 35 ℃) | < 2.5 ppm (15 ℃ to 35 ℃) | < 1,0 ppm (15 ℃ to 35 ℃) |
| Phase noise (at 10 kHz offset) | < -82 dBc/Hz | < -82 dBc/Hz | < -82 dBc/Hz | < -98 dBc/Hz |
| Price |
Specifications
| Display | 10.4" LCD |
| Resolution | 1 Hz |
| Noise level | Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz |
| Maximum input voltage | 50 Vdc |
| Maximum input power | 30 dBm average continuous power |
| Amplitude display | Log: 1 dB - 255 dB, 5 divisions Linear: 0 - 100 %, 5 divisions |
| Tracking generator output power | -40 dBm - 0 dBm |
| Connections | HOST USB, USB DEVICE, LAN, 3.5mm jack, REF, VGA |
| Dimensions | 421 x 221 x 115 mm |
| Weight | 5 kg |
Accessories
The Owon XSA1075-TG is delivered including:
- Power cable
- USB cable
- CD rom with software
Pros and cons
- High frequency range
- Built-in pre-amplifier
- Tracking generator
- No touchscreen display
Downloads
| Owon XSA1000 user manual |  (1.92 MB) | Download |
| Owon XSA1000 quick guide | (1.8 MB) | Download |
| Owon XSA1000TG specifications | (177.18 KB) | Download |
