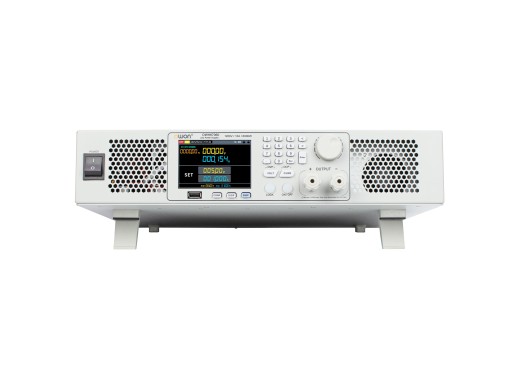

Owon OWH67060-1200L power supply
Details
The Owon OWH67060-1200L power supply is part of the OWH67 series of power supplies, which is a follow-up to the OWON OWP series. The device has a voltage range of up to 1200V, a current range of up to 10A, and a total output of up to 6000W.
This power supply comes with a built-in LAN interface for remote programming and monitoring, as well as an integrated PV (photovoltaic) simulator for testing solar inverters and MPPT systems. It also offers various safety features such as OCP, OVP, OPP, SCP, UVLO and UCLO. Furthermore, it contains a built-in discharge circuit in the form of a resistor, which dissipates residual charge from capacitors when the power supply is turned off or the load is disconnected.
This series features a programmable LIST waveform output function that supports up to 100 sequence steps, capable of measuring periods from as low as 1ms to as high as 28 hours, with the possibility of customising each sequential step. The power supply can be connected in parallel with up to two units, reaching a maximum current of 20A. Finally, the OWH67 series power supplies come with a vivid colour 3.9" TFT LCD screen.
It is also possible to connect multiple units in parallel, extending the power to a maximum of 9000W. Please contact us to discuss possible configurations.
Model overview
| Model | Total power | Voltage range | Current range | Ripple | Price |
| OWH67012-80L | 1200 W | 0 - 80 V | 0 - 30 A | 100 mV / 50 mA | |
| OWH67012-150L | 1200 W | 0 - 150 V | 0 - 20 A | 100 mV / 50 mA | |
| OWH67012-300L | 1200 W | 0 - 300 V | 0 - 10 A | 250 mV / 50 mA | |
| OWH67030-150L | 3000 W | 0 - 150 V | 0 - 30 A | 100 mV / 50 mA | |
| OWH67030-300L | 3000 W | 0 - 300 V | 0 - 15 A | 250 mV / 50 mA | |
| OWH67030-600L | 3000 W | 0 - 600 V | 0 - 10 A | 500 mV / 50 mA | |
| OWH67060-300L | 6000 W | 0 - 300 V | 0 - 30 A | 250 mV / 50 mA | |
| OWH67060-600L | 6000 W | 0 - 600 V | 0 - 20 A | 500 mV / 50 mA | |
| OWH67060-1200L | 6000 W | 0 - 1200 V | 0 - 10 A | 1000 mV / 50 mA |
Specifications
| Outputs | 1 |
| Output switch | Yes |
| Resolution | 10 mV / 1 mA |
| Protection | OVP, OCP, OPP, SCP, UVLO, UCLO |
| Interfaces | RS485, USB, CAN, LAN, DB25 |
| Display | 3.9" TFT LCD |
| Dimensions | 430 x 88 x 453 mm |
| Weight | 13 kg |
Accessories
The OWH67060-1200L comes with:
- Power cord
- USB cable
- Voltage remote sense terminal
- AC terminal protective cover
- DC terminal protective cover
Pros and cons
- High output power
- LAN for programming
- Parallel connection capable
Downloads
| Owon OWH67 series data sheet |  (3.13 MB) | Download |
| Owon OWH67 series user manual | (2.24 MB) | Download |
