Owon OWH67030-150L power supply

1495.87 €1,495.87 Excl. VAT
Loading stock info
  •
Product number: ELE007979

Be the first to review this product

Lowest price guaranteed

Details

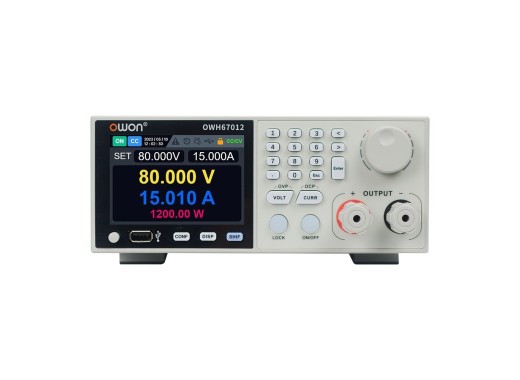

Note: Images are of the OWH67012, but the devices are comparable.

The Owon OWH67030-150L power supply is part of the OWH67 series of power supplies which is a follow-up to the OWON OWP series. The device has a voltage range of up to 150V, a current range of up to 30A, and a total output of up to 3000W.

This power supply comes with LAN for programming and various safety features such as OCP, OVP, OPP, SCP, UVLO and UCLO. Furthermore, it contains a built-in discharge circuit in the form of a resistor which dissipates residual charge from capacitors when the power supply is turned off or the load is disconnected.

This series features a programmable LIST waveform output function that supports up to 100 sequence steps, capable of measuring periods from as low as 1ms to as high as 28 hours, with the possibility of customising each sequential step. The power supply can be connected in parallel with up to ten units, reaching a maximum current of 300A. It is also possible to connect two units in series, extending the voltage to a maximum of 300V. Finally, the OWH67 series power supplies come with a vivid colour 3.9" TFT LCD screen.

If you are interested in multiple units connected in series or parallel, please contact us to discuss possible configurations.

Model overview

Model Total power Voltage range Current range Ripple Price
OWH67012-80L 1200 W 0 - 80 V 0 - 30 A 100 mV / 50 mA 904.96 €904.96 Excl. VAT
OWH67012-150L 1200 W 0 - 150 V 0 - 20 A 100 mV / 50 mA 904.96 €904.96 Excl. VAT
OWH67012-300L 1200 W 0 - 300 V 0 - 10 A 250 mV / 50 mA 904.96 €904.96 Excl. VAT
OWH67030-150L 3000 W 0 - 150 V 0 - 30 A 100 mV / 50 mA 1495.87 €1,495.87 Excl. VAT
OWH67030-300L 3000 W 0 - 300 V 0 - 15 A 250 mV / 50 mA 1495.87 €1,495.87 Excl. VAT
OWH67030-600L 3000 W 0 - 600 V 0 - 10 A 500 mV / 50 mA 1495.87 €1,495.87 Excl. VAT
OWH67060-300L 6000 W 0 - 300 V 0 - 30 A 250 mV / 50 mA 2099 €2,099.00 Excl. VAT
OWH67060-600L 6000 W 0 - 600 V 0 - 20 A 500 mV / 50 mA 2099 €2,099.00 Excl. VAT
OWH67060-1200L 6000 W 0 - 1200 V 0 - 10 A 1000 mV / 50 mA 2199 €2,199.00 Excl. VAT

Specifications

Outputs1
Output switchYes
Resolution10 mV / 1 mA
ProtectionOVP, OCP, OPP, SCP, UVLO, UCLO
InterfacesRS485, USB, CAN, LAN, DB25
Display3.9" TFT LCD
Dimensions216.6 x 88 x 453 mm
Weight6.8 kg

Accessories

The OWH67030-150L comes with:

  • Power cord
  • USB cable
  • Handle

Pros and cons

  • LAN for programming
  • Parallel and series connection capable

Downloads

Owon OWH67 series data sheet
pdf (3.13 MB)Download
Owon OWH67 series user manual
pdf (2.24 MB)Download
