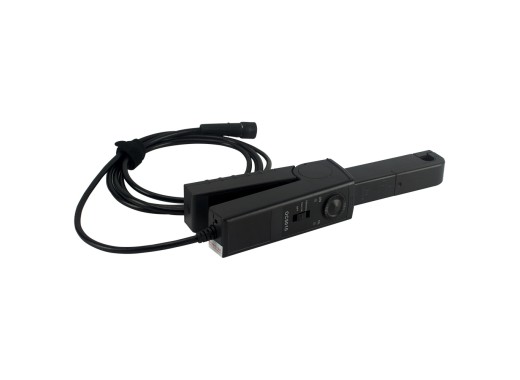

Owon OC5010 AC/DC current probe
Details
The Owon OC5010 AC/DC current probe can measure both DC and AC currents with a wide measuring range of 0.05A - 100A. The probe has a BNC connector and can be applied to any test instrument with a BNC connector. The bandwidth of the current probe is 100kHz and it has a jaw size of 11.8mm. Also, the OC5010 has an automatic and manual zero adjustmant.
Specifications
| Bandwidth | 100 kHz |
| Range | 50 mA - 10 A 1 A - 100 A |
| Rise time | < 3 μs (10A) < 4 μs (100A) |
| Indication of overload | Yes |
| Dimensions | 231 x 36 x 67 mm |
| Weight | 330 g |
Accessories
The Owon OC5010 AC/DC current probe comes with:
- 1x 9V battery
