164.46 €164.46 Excl. VAT
Loading stock info
  •
Product number: ELE002274

Be the first to review this product

Details

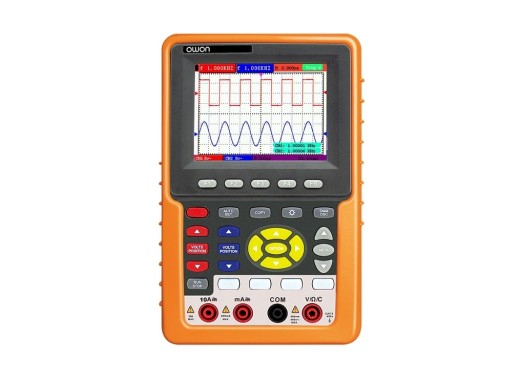

The OWON HDS1021M-N is a 2 in 1 handheld oscilloscope and also has multimeter functionalities. It is a robust and compact oscilloscope and can therefore be used in many situations. The oscilloscope has great features despite having only 1 channel. The HDS1021M-N has an FFT spectrum analysis function, a recording length of 24k points and can send data via USB. If you are looking for a similar model with higher bandwidth, look at the the HDS2061M-N.

In short, if you are looking for a versatile oscilloscope and multimeter in 1, the HDS1021M-N is a good choice!

Specifications

Oscilloscope
Bandwidth20 MHz

Sample rate

500MS/s
Number of channels1

Recording length

24k points
Input impedance1 MΩ

Vertical resolution

8 bits

Horizontal scale

5 ns/div - 100 s/div

Rise time

≤ 17.5 ns

Vertical sensitivity

5 mV/div - 5 V/div
Multimeter
VoltageDC: 1mV - 1000V
AC: 1V - 750V

Current

AC/DC: 1mA - 10A
Resolution4000 counts

Resistance

40MΩ

Capacity

51.2 nF - 100 μF

Diode

0 - 1.5 V
Dimensions115 x 180 x 40 mm

Screen

3.7" TFT 620x480 pixels
Li-ion battery7.4 V, 6-hour working time
Weight 645.00 g

Accessories

The Owon HDS1021M-N comes standard with:

  • Probes
  • Power supply
  • USB cable
  • Multimeter cables
  • Probe adjustment tool
  • Capacity expansion module
  • Carrying bag

Pros and cons

  • Only 20 MHz bandwidth
