Owon ADS914A oscilloscope
Details

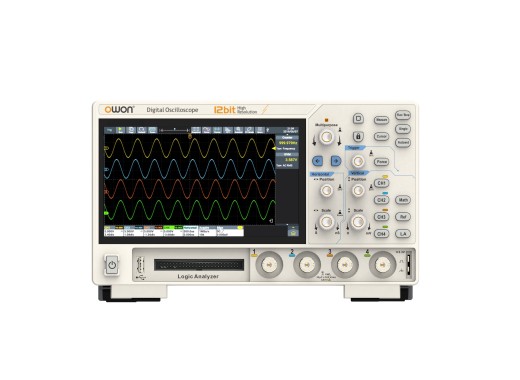

The Owon ADS914A is an affordable 12-bit oscilloscope part of the ADS900A series. It features 4 channels with a bandwidth of 125MHz. For this price point, the oscilloscope has a high sample rate of 2 GSa/s and memory depth of 100Mpts. Additionally, the ADS914A comes standard with enhanced FFT, which allows real-time waveform processing up to 1Mpts.
The ADS900A series has many interface options such as HDMI, USB, Trig Out(P/F) and LAN. Furthermore, there are nice quality-of-life features such as an updated user-friendly touch UI with gesture control, web control support allowing you to control the oscilloscope remotely and video recording to document and share test results. We offer the Owon 16-channel logic analyser probe option here. Finally, the device has a 7" TFT LCD screen.
Model overview
| Model | ADS914A | ADS914A-AG | ADS924A | ADS924A-AG |
|---|---|---|---|---|
| Bandwidth | 125 MHz | 125 MHz | 250 MHz | 250 MHz |
| Arbitrary waveform generator | No
| Yes
| No
| Yes
|
| Price |
Specifications
| Channels | 4 |
| Memory depth | 100 Mpts (divided by number of active channels) |
| Sample rate | 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 700,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 200 µV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 1 ks/div |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, HDMI |
| Decoding | I2C, SPI, UART/RS232, CAN, LIN |
| Display | 7" TFT LCD (1024x600) |
| Dimensions | 260 x 160 x 78 mm |
| Weight | 1.5 kg |
Options
| Logic analyser option | 16-channel logic analyser probe |
Accessories
The ADS914A comes by default with:
- Power cord
- Power adapter
- USB cable
- 4 passive probes
Pros and cons
- Good price-to-performance
- High memory depth
- High sample rate
Downloads
| ADS900A series user manual |  (11.29 MB) | Download |
| ADS900A series data sheet | (35.93 MB) | Download |
