NGI N83624-15-01 battery simulator
Details

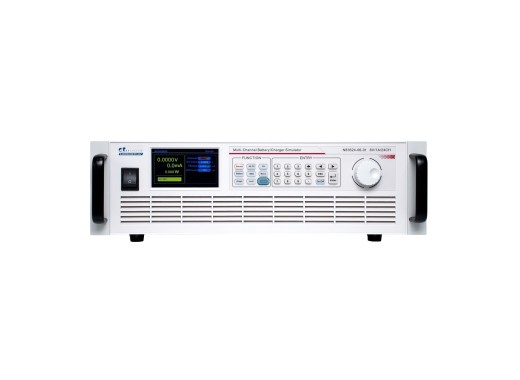

Note: The images shown are of the NGI N83624-06-01. It may look slightly different to this model.
The NGI N83624-15-01 is a programmable, low-power battery simulator. It has 24 isolated channels, with each channel capable of delivering up to 15V, 1A, and 15W. The device also allows multi-channel series connections. Additionally, the N83624-15-01 offers a high accuracy of up to 1.5mV/1µA. This high accuracy makes it suitable for BMS/CMS testing. The battery simulator also has a precise output resolution of up to 0.1mV/0.1µA. The device can also be used as a high-accuracy DC power supply. Furthermore, the simulator has an LCD screen and can be remotely controlled through the provided software. The software can also provide graphs, data analysis and a report function.
The NGI N83624-15-01 is not bi-directional and can only output current. As such, it can only simulate a battery in discharge mode. If you are looking for a bi-directional battery simulator, check out the NGI N9000 series battery simulator.
Model overview
| Models | N83624-06-01 | N83624-15-01 | N83624-06-03 | N83624-06-05 |
|---|---|---|---|---|
| Max. power | 6 W/CH | 15 W/CH | 18 W/CH | 30 W/CH |
| Max. voltage | 6 V/CH | 15 V/CH | 6 V/CH | 6 V/CH |
| Max. current | 1 A/CH | 1 A/CH | 3 A/CH | 5 A/CH |
| Voltage accuracy | 0.6 mV | 1.5 mV | 0.6 mV | 0.6 mV |
| Current accuracy | 1 µA - 1 mA | 1 µA - 1 mA | 1 µA - 3 mA | 1 µA - 5 mA |
| Price |
Specifications
| Channels | 24 |
| Voltage resolution | 0.1 mV |
| Current resolution | 0.1 µA - 0.1 mA |
| Interfaces | LAN, RS232, CAN |
| Dimensions | 132.5 x 482 x 559 mm |
| Weight | 17 kg |
Accessories
The NGI N83624 series comes with:
- Power cord
Pros and cons
- High precision
- High accuracy
- 24 Isolated channels
- Multi-channel series connections
- Only discharge mode
Downloads
| NGI N83624 series user manual |  (8.43 MB) | Download |
| NGI N83624 series datasheet | (2.7 MB) | Download |
