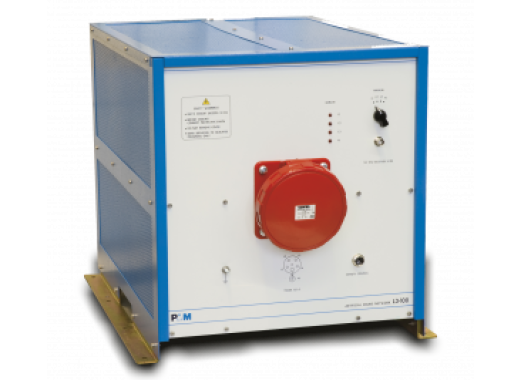

Narda PMM LISN L3-100
Details
This Narda PMM LISN is intended to measure mains inference coming from the power supply of products. The L3-100 is suitable for measurements on 3-phase AC power supplied electric and electronic equipment and offers support up to 100 A. Also, it is possible to support 125 A for 5 minutes. The frequency range for the L3-100 is 9 kHz - 30MHz.
The equivalent V-network of 50 ohms || (5ohm + 50μH) conforms with all standards. Also, the L3-100 fully complies with the following requirements: CISPR 16-1-2-2, VDE 0876, FCC part 15 and MIL-STD 461F.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Max. voltage | 230 V / 50-60 Hz (CAT II) |
| Max. current | 100 A (125 A < 5 minutes) |
| Impedance | 50 Ω ║ (5 Ω + 50 µH) |
| Dimensions | 465 x 450 x 740 mm |
| Weight | 70 kg |
Accessories
The Narda PMM LISN L3-100 comes with the following accessoires:
- RF cable
- LISN remote control cable
- IEC mains plug
- Calibration certificate
Downloads
| Narda PMM L3-100 Datasheet |  (1.57 MB) | Download |
