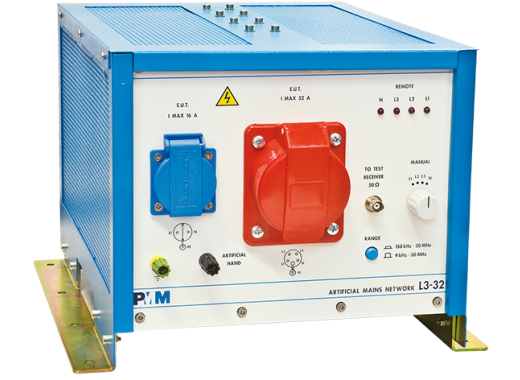

Narda PMM LISN L3-32
Details
This Narda PMM LISN is intended to measure mains inference coming from the power supply of products. The L3-32 is suitable for measurements on 3-phase AC power supplied electric and electronic equipment. Because the L3-32 is equipped with a 1-phase socket and offers support up to 32A, it is suitable for most devices. This LISN also supports DC up to 60 Hz.
The equivalent V-network of 50 ohms || (5ohm + 50μH) conforms with all standards. On top of that the LISN is equipped with toggle-able a high pass filter of 150 kHz - 30 MHz, suited to perform measurements on interference in another frequency range then the standard supported 9 kHz up to 30 MHz.
The L3-32 fully complies with the requirements CISPR 16-1-2-2, VDE 0876, FCC part 15 and MIL-STD 461F. It also comes with an artificial hand circuit.
Specifications
| Frequency range | 9 kHz - 30 MHz |
| Max. voltage | 240 V / 50-60 Hz (CAT II) |
| Max. current | 32 A |
| Impedance | 50 Ω ║ (5 Ω + 50 µH) |
| Dimensions | 342 x 254 x 510 mm |
| Weight | 16.5 kg |
Accessories
The Narda PMM LISN L3-32 comes with the following accessoires:
- RF cable
- LISN remote control cable
- IEC mains plug
- Calibration certificate
- Manual
Pros and cons
- Suitable for 3-phase and 1-phase
- Switchable frequency range
Downloads
| User Manual PMM L3 |
 (1.66 MB) |
Download |
| Datasheet PMM L3-32 |
(1.66 MB) |
Download |
