Micsig AHO14-200 automotive oscilloscope
Details

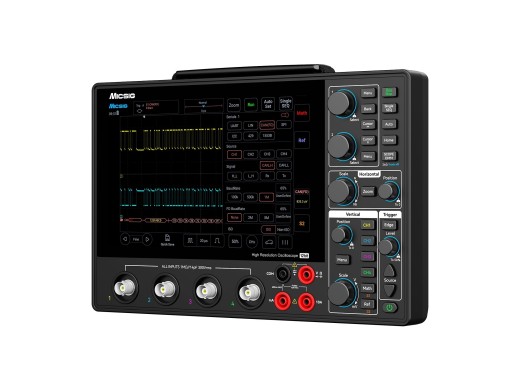

The Micsig AHO14-200 is a high-resolution handheld oscilloscope similar to the MHO14-200, but designed specifically for the automotive industry. This model comes with 4 analog channels and a bandwidth of 200MHz. Moreover, it has a 1GSa/s sample rate, a memory depth of 110Mpts, and a high waveform speed of 50,000wfm/s, allowing it to capture random spikes or glitches. The device also includes an integrated multimeter with 4⅚-digit display, allowing for current, voltage, resistance, continuity, diode, and capacitance measurements. An upside of this oscilloscope is that it is only 31mm thick and can be controlled through an 8-inch capacitive touchscreen display. It is also possible to control the oscilloscope remotely from a PC or Android app, or use an external display via an HDMI cable.
Specifications
| Bandwidth | 200 MHz |
| Channels | 4 |
| Memory depth | 110 Mpts (single channel) |
| Sample rate | 1 GSa/s (single channel) |
| Waveform capture rate | 50,000 wfm/s |
| Rise time | ≤ 1.75 ns |
| Vertical resolution | 12 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1 ks/div |
| Interfaces | USB 3.0 Host, USB Type-C, LAN, HDMI, SCPI, remote control |
| Decoding type | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC-429, MIL-STD-1553B |
| Battery | 3.7 V, 16000 mAh Li-ion battery |
| Display | 8" TFT LCD (1280x800) |
| Dimensions | 265 x 174 x 31 mm |
| Weight | 1.73 kg |
Accessories
The Micsig AHO14-200 comes by default with:
- 2x Passive probes
- 4x BNC to banana cables
- 2x Alligator clips/pair
- 2x Soft pin probes/pair
- Multimeter pen/pair
- Power adapter
- Power cord
Pros and cons
- Automotive functions
- Able to connect to Android phone
- High waveform capture speed
- Small and compact
Downloads
| AHO1 series datasheet |  (4.24 MB) | Download |
| Micsig AHO1 series user manual | (27.24 MB) | Download |
