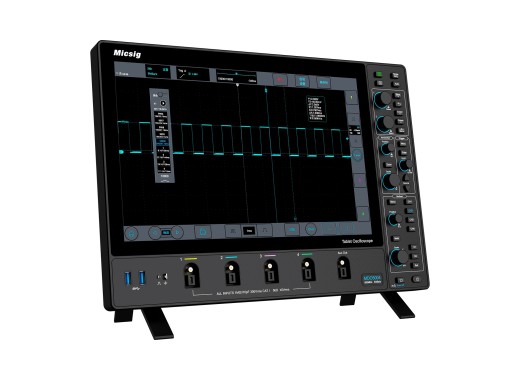

The Micsig MDO5004 oscilloscope is a 4-channel digital oscilloscope with a bandwidth of 500MHz. This oscilloscope has an 8-bit resolution; for a similar oscilloscope with a 12-bit resolution, see the Micsig MHO3 series. The MDO5004 has a 3GSa/s sampling rate, 360Mpts memory depth and a high waveform capture rate of 230.000wfm/s. Additionally, it has a large 14" TFT touchscreen with a resolution of 1920x1200 pixels.
The oscilloscope supports PC and smartphone remote control and can simultaneously save data on multiple channels. The MDO5004 supports multiple mathematical functions such as addition, multiplication, and differentiation and supports FFT. It has multiple trigger types such as edge, pulse logic and more.
Model overview
We offer multiple oscilloscopes in the MDO series, differing in bandwidth and rise time.
| Model |
MDO2504
|
MDO3504
|
MDO5004
|
| Bandwidth |
250 MHz |
350 MHz |
500 MHz |
| Rise time |
≤ 1.4 ns |
≤ 1.0 ns |
≤ 0.7 ns |
| Price |
1799
€1,799.00
Excl. VAT
|
1899
€1,899.00
Excl. VAT
|
1949
€1,949.00
Excl. VAT
|
Specifications
| Channels | 4 |
| Memory depth | 360 Mpts (divided by number of active channels) |
| Sample rate | 3 GS/s (divided by number of active channels) |
| Waveform capture rate | 230.000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 1 ks/div |
| Interfaces | USB Host, USB Device, LAN, HDMI, Trigger Out |
| Decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC429, 1553B |
| Display | 14" TFT LCD (1920x1200) |
| Dimensions | 400 x 280 x 35.8 mm |
| Weight | 4.3 kg |
Accessories
The Micsig MDO5004 oscilloscope comes with:
- 4x passive probe
- 4x MSP-BNC adapter
- 1x power adapter
Pros and cons
- 14" touchscreen with 1920x1200 resolution
- Memory depth of 360 Mpts
Downloads
(14.11 MB)
