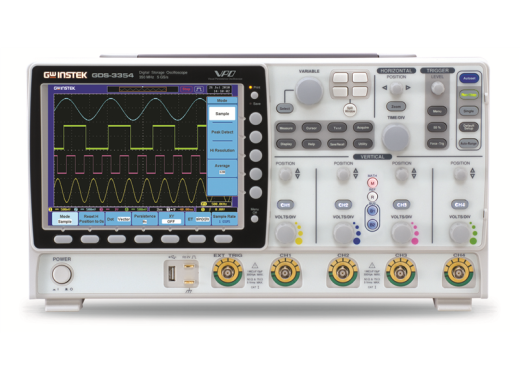

GW Instek GDS-3504 oscilloscope
Details
The GW Instek GDS-3504 is a 500 MHz oscilloscope with a sampling rate of 4 GSa/s. It features a large screen and VPO (visual persistence oscilloscope) technology, which provides a clear and detailed display of signals. The unique split-screen function allows each input channel to be controlled and viewed independently with its own settings and waveform display.
With the GDS-3000 series oscilloscopes, the input impedance can also be changed to either 50 Ω, 70 & or 1 MΩ. However, the bandwidth at 70 Ω impedance is limited to 150 MHz.
Connectivity
The GDS-3000 series oscilloscopes have a USB-port at the front and rear to ensure easy access to stored data. The integrated SVGA video output allows the displayed images to be transmitted to a monitor or external projector. Furthermore, the oscilloscopes have RS-232 and LAN interfaces. It is also possible to print the data directly on printers that support PictBridge.
Model overview
The 3502 and 3504 differ only in the number of channels.
| Model | GDS-3502 | GDS-3504 |
|---|---|---|
| Channels | 2 | 4 |
| Price |
Specifications
| Analog Bandwidth | 500 MHz |
| Memory depth | 25 kpts per channel |
| Sampling rate | 4 GSa/s |
| Waveform capture rate | up to 3500 wfm/s |
| Vertical resolution | 2 mV/div - 5 V/div |
| Horizontal scale | 1 ns/div - 100s/div |
| Interfaces | USB, RS-232, LAN, Go-No Go, trigger, calibration |
| Runtime | 700 ps |
| A/D converter | 8 bit resolution |
| Input Impedance | 50 Ω, 75 Ω, 1 MΩ |
| Max voltage | 300V RMS, CAT I |
| Display | 8" TFT, 800x600 px |
| Dimensions | 400 x 200 x 130 mm |
| Weight | 4 kg |
Accessories
All oscilloscopes of the GDS-3000E series are delivered including:
- Power cord
- Probes, 1 per channel, 150/250/350/500 MHz depending on model
- Declaration of traceable calibration
The PC software and drivers can be downloaded for free from the GW Instek website.
Downloads
| GDS-3000 series manual |  (6.06 MB) | Download |
| GDS-3000 series datasheet | (7.82 MB) | Download |
| DTC sample | (126.04 KB) | Download |
