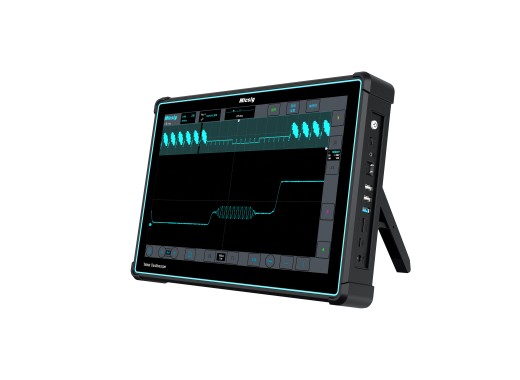

The Micsig ETO3504 oscilloscope is a 4-channel tablet oscilloscope with a bandwidth of 350MHz. The oscilloscope has an 8-bit resolution, this oscilloscope is similar to the Micsig MDO series but without buttons and in tablet form. The ETO3504 has a 3GSa/s sampling rate, 360Mpts memory depth and a high waveform capture rate of 230.000wfm/s. The device has a low noise floor of < 90μVrms at 350MHz. This tablet oscilloscope has a large 14" TFT touchscreen with a resolution of 1920x1200 pixels. This oscilloscope does not have any buttons on the device.
The oscilloscope has a large 13.500mAh built-in battery. With this, the ETO3504 is easy to use in the field in comparison with the Micsig MDO or MHO3 series. The oscilloscope supports PC and smartphone remote control and can simultaneously save data on multiple channels. The Micsig ETO3504 supports multiple mathematical functions such as addition, multiplication and differentiation as well as support for FFT. It has multiple trigger types such as edge, pulse logic and more.
A replacement battery can be found here.
Model overview
We offer multiple oscilloscopes in the ETO series, differing in bandwidth and rise time.
| Model |
ETO3504
|
ETO5004
|
| Bandwidth |
350 MHz |
500 MHz |
| Rise time |
≤ 1.0 ns |
≤ 0.7 ns |
| Price |
1999
€1,999.00
Excl. VAT
|
2699
€2,699.00
Excl. VAT
|
Specifications
| Channels | 4 |
| Memory depth | 360 Mpts (divided by number of active channels) |
| Sample rate | 3 GS/s (divided by number of active channels) |
| Waveform capture rate | 230.000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 1 ks/div |
| Interfaces | USB Host, USB Device, HDMI, Trigger Out |
| Decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC429, 1553B |
| Display | 14" TFT LCD (1920x1200) |
| Dimensions | 353 x 245 x 56 mm |
| Weight | 3.6 kg |
Accessories
The Micsig ETO3504 oscilloscope comes with:
- 4x passive probe
- 4x MSP-BNC adapter
- 1x power adapter
- 1x (built-in) battery
