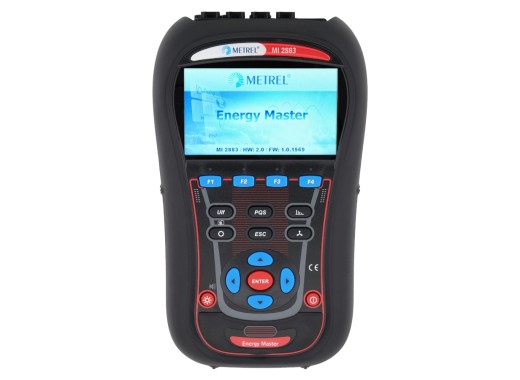

Metrel MI 2883 EU kit power logger
Details
The Metrel MI 2883 EU is a handheld, three-phase power quality analyser. It is specifically designed to log energy and perform efficiency calculations in portable situations. With its capability to measure harmonics and flicker (while being compliant with power quality standard IEC 61000-4-15), as well as being able to perform power measurements fully compliant with IEEE 1459. The key feature of this device is the automatic Smart Clamp detection and Smart Clamp range selection, making this power logger more user-friendly. The MI 2883 EU is able to store data for up to a year, depending on the size of the SD card, making it perfect for long -term analysis.
With the EU kit, this power logger gains a lot of additional accessories, including 1-phase flexible current clamps that are automatically recognised by the equipment with no additional power supply needed.
The Metrel MI 2883 comes with free PC software PowerView3 a reporting software to make measurements easier.
Model overview
| Models | MI 2883 EU | MI 2885 | MI 2892 EU |
|---|---|---|---|
| IEC 61000-4-30 class | Class S | Class S | Class A |
| Price |
Specifications
| Inputs | 3 voltage channels 4 current channels |
| Voltage | 50-1000 VRMS (Phase) 50-1730 VRMS (Line) |
| Current | 30-3000 ARMS |
| Harmonics | 5 Hz - 120 Hz |
| Measurement speed | 7000 samples/s (50/60 Hz) |
| Transient recorder | Yes |
| Interfaces | Ethernet, USB host |
| Display | 4.3" colour TFT (480 x 272) |
| Standards | EN 61010-1, IEC/EN 61000-4-30, Class S; IEC/EN 61557-12, Class I IEC/EN 61000-4-7, IEC/EN 61000-4-15, EN 50160, IEE 1448, IEEE 1459, EN 61326 |
| Storage | 8GB MicroSD card included, supports up to 32GB |
| Dimensions | 230 x 140 x 80 mm |
| Weight | 960 g |
Accessories
The Metrel MI 2883 Euro set power analyser is delivered with:
- 3x 1-phase clamp
- 4x Test probe
- 4x Crocodile clip
- 4x Voltage measurement lead
- Labels for colour coding
- 8GB MicroSD card
- MicroSD card reader
- PC PowerView3 software
- USB cable
- 6x 1.2 V NiMH rechargeable battery
- Soft carrying bag
- Power supply
- Calibration certificate
Pros and cons
- Long term logger due to a micro SD
- Can log a wide range of changes
Downloads
| Metrel MI 2883 user manual |  (6.06 MB) | Download |
| Metrel MI 2883 data sheet | (1.66 MB) | Download |
