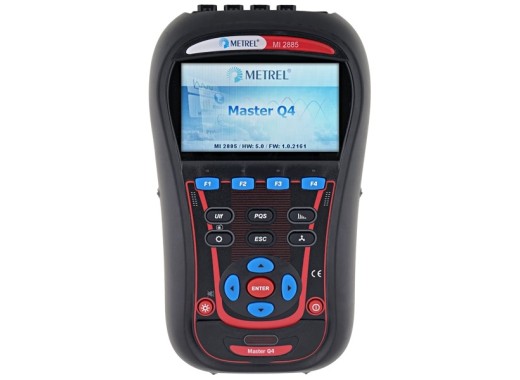

Metrel MI2885 power analyser
Details
The Metrel MI 2885 Master Q4 power quality analyser is a handheld multifunction instrument for power quality analysis and energy efficiency measurements. The MI 2885 fully complies with power quality standard IEC 61000-4-30 Class S. The analyser allows simultaneous voltage and current (8 channels) sampling, and 16-bit AD conversion for accurate power measurements and minimal phase shift error. The 4 voltage channels in the MI 2885 have a wide measurement range of up to 1000Vrms, CAT III / 1000V, with support for medium and high voltage systems.
The MI 2885 performs a full analysis of unbalance and flicker as well as harmonics up to the 50th order for advanced interpretation of system performance. The MI 2885 also has a transient recorder with envelope and level trigger. An 8GB micro-SD is supplied as standard and this allows over a year of continuous monitoring. The Metrel PC SW PowerView 3 is supplied as standard and is an integral part of a measuring system which provides the easiest way to download, view and analyse measured data or print reports.
Model overview
| Models | MI 2883 EU | MI 2885 | MI 2892 EU |
|---|---|---|---|
| IEC 61000-4-30 class | Class S | Class S | Class A |
| Price |
Specifications
| Maximum voltage | 1000 Vrms (Phase) 1730 Vrms (Line) |
| Maximum current | 6000 A RMS |
| Harmonics | 5 Hz - 120 Hz |
| Measurement speed | 7000 samples/sec (50/60 Hz) |
| Transient recorder | Yes |
| Connectivity | Ethernet, USB Host |
| Display | 4.3" color TFT (480 x 272) |
| Standards | EN 61010-1, IEC/EN 61557-12, Class I IEC/EN 61000-4-7, IEC/EN 61000-4-15, EN 50160, IEEE 1459, EN 61326 |
| Dimensions | 230 x 140 x 80 mm |
| Weight | 960 g |
Accessories
The Metrel MI 2885 standard set power analyser is delivered with:
- 5x Test probe
- 5x Crocodile clip
- 5x Voltage measurement lead
- Soft carrying bag
- Power supply
Downloads
| Metrel 2885 - Datasheet |  (1.98 MB) | Download |
| Metrel 2885 - User manual | (6.77 MB) | Download |
