Matrix MEL9721H DC electronic load
Details

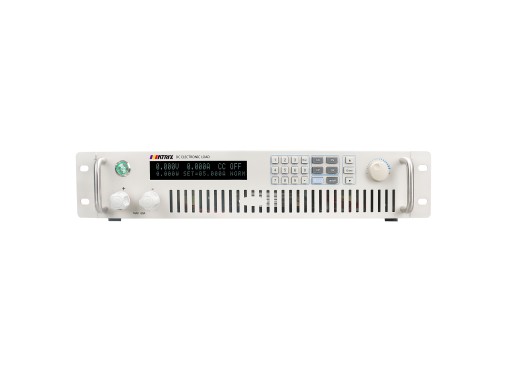

Note: Image may show a different model variant. Interface and functionality are identical across the series, but dimensions vary per model.
The Matrix MEL9721H belongs to the MEL-9000 series, which is characterised by its high power output. The electronic load is able to deliver a voltage of 1-500V, an output current of 200A and 8000W of power.
The MEL-9000 series electronic loads are DC loads designed for demanding applications. The loads are equipped with a numeric keypad and a rotary knob for programming the load. The load features an automatic test function, alongside other features such as battery discharge, battery test, built-in timer and more that can be expected to be on an electronic load. Moreover, the MEL-9000 series has several options to connect it to a pc, for monitoring and control.
Model overview
The main differences between the models of the MEL-9000 series are shown in the table below.
| Model | MEL9716H | MEL9718H | MEL9719H | MEL9721H |
|---|---|---|---|---|
| Power | 1200 W | 3600 W | 4800 W | 8000 W |
| Current | 120 A | 120 A | 120 A | 200 A |
| Dimensions | 480 x 90 x 400 mm (2 U) | 480 x 270 x 400 mm (6 U) | 480 x 360 x 400 mm (8 U) | 480 x 540 x 400 mm (12 U) |
| Price |
Specifications
| Voltage | 1 - 500 V |
| Static modes | CC, CR, CV, CP |
| Dynamic modes | CC, CP, CR |
| Protection | OVP, OPP, OCP, OTP |
| Display | LCD |
| Weight | 50 kg |
Accessories
The Matrix MEL-9000 series comes with:
- 4x square red/black wire
- 1x Power cord
Pros and cons
- High power for an affordable price
- High voltage
Downloads
| Matrix MEL9000 datasheet |  (3.95 MB) | Download |
| Matrix MEL9000 user manual | (1.41 MB) | Download |
