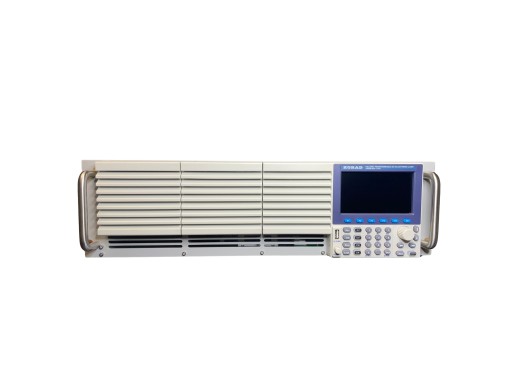

Korad KEL2070 electronic load
Details
The provided images are of the KEL2060, but the two models are comparable
The Korad KEL2070 electronic load belongs to the KEL2000 series. This model can draw up to 4800W, handle currents up to 340A, voltages up to 80V, and features an input impedance of 150kΩ. In addition to short circuit protection and a power-off memory function, this series of electronic loads offers various options for testing.
These electronic loads allow you to measure voltage, current, and power while also providing advanced functionalities such as battery testing, automatic testing, OPP testing, and OCP testing. Additionally, they feature a bright LCD screen with a high resolution of 0.1 mV/0.1 mA, a waveform display function, and disk storage.
Models
| Model | Power | Voltage range | Current range | Price |
|---|---|---|---|---|
| KEL2010 | 300 W | 0 - 150 V | 0 - 40 A | |
| KEL2020 | 500 W | 0 - 150 V | 0 - 40 A | |
| KEL2030 | 1000 W | 0 - 150 V | 0 - 40 A | |
| KEL2040 | 1500 W | 0 - 150 V | 0 - 40 A | |
| KEL2050 | 1200 W | 0 - 80 V | 0 - 85 A | |
| KEL2060 | 2400 W | 0 - 80 V | 0 - 170 A | |
| KEL2070 | 4800W | 0 - 80 V | 0 - 340 A |
Specifications
| Resolution | 0.1 mV - 0.1 mA (low) 1 mV - 1 mA (high) |
| Slew rate | 0.0001 A/μs-0.3A/μs (low) 0.001 A/μs-1.5 A/μs (high) |
| Static modes | CC, CR, CV, CW |
| Dynamic modes | CC (0-10 kHz), CP (0-10 kHz), CV (0-10 kHz) |
| Protection | OPP, OCP, OVP, OTP |
| Interfaces | RS232, USB, LAN |
| Display | 3.5" TFT |
| Dimensions | 483 x 563 x 133 mm |
| Weight | 29.3 kg |
Accessories
- Power cord
- USB cable
- RS232 cable
Pros and cons
- Good value
- High power
Downloads
| KEL2070 datasheet |  (124.83 KB) | Download |
