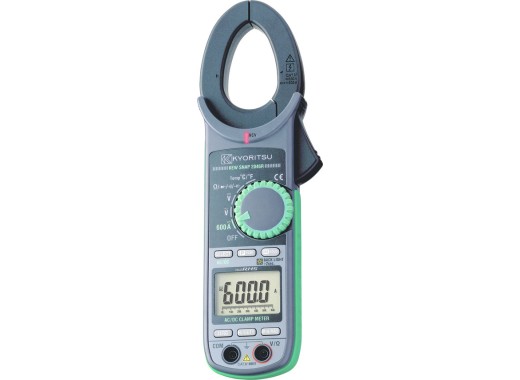

Kyoritsu 2046R clamp meter
Details
The Kyoritsu 2046R is a true RMS AC/DC current clamp which also features multimeter functions and can measure up to 600V/600A. This meter is able to measure voltage, current, resistance, capacitance, and even frequency and duty cycle. Next to this, diode and continuity checks have also been included. A large LCD display with backlight is added for great readability, even in low light settings. Conductor diameters up to 33mm are supported, which makes this a rather versatile meter.
The 2046R also features some advanced measurement functions such as relative measurements, data hold, peak hold, MAX/MIN, bar graph and NCV (Non Contact Voltage warning). Next to this the possibility also exist to measure temperature, with the optional Kyoritsu 8216 temperature probe.
Specifications
| Current AC/DC | 0 - 600.00 A |
| Voltage | |
| AC | 0 - 600 V |
| DC | 0 - 600 V |
| Resistance | 0 - 60 MΩ |
| Continuity buzzer | below 100 Ω |
| Capacitance | 0 - 40 µF |
| Frequency | 0 - 10 kHz |
| Duty Cycle | 0.1 % - 99.9 % |
| Extra functions | Data hold, peak hold, REL, MAX/MIN, bar graph, NCV |
| Maximum conductor size | ⌀ 33 mm |
| True RMS | Yes |
| Display | 6000 counts with backlight |
| Safety Category | CAT IV 600V |
| Power source | 2 x R03 1.5V (AAA) batteries |
| Dimensions | 243 x 77 x 36 mm |
| Weight | 300 g |
Accessories
The Kyoritsu 2046R includes:
- Test leads
- Batteries
- Carrying case
Pros and cons
- Included extra functionalities such as: data hold, peak hold, REL, MAX/MIN, bar graph, NCV
- LCD backlight
- Double molding design for comfortable feeling in handpalm
- Temperature measurements are supported, but the required temperature probe is not included
Downloads
| Kyoritsu 2046R Datasheet |  (395.39 KB) | Download |
