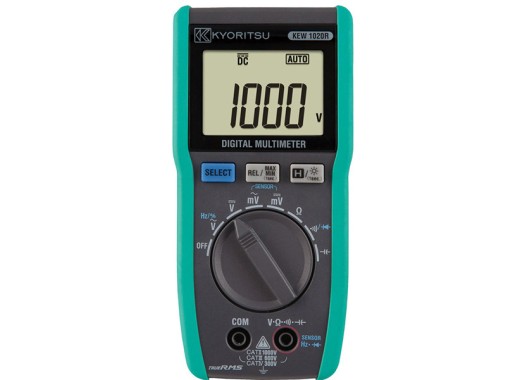

Kyoritsu 1020R multimeter

The Kyoritsu 1020R multimeter is a budget True RMS multimeter. The multimeter can measure both AC and DC voltage up to 1000 V. In addition, it is possible to measure up to 200 A together with a current clamp. Furthermore, the 1020R has the ability to measure resistance, duty cycle, and frequency. Also, the multimeter has a diode test, and capacitance test. In addition, this multimeter meets the requirements of CAT II to CAT IV safety classes. The multimeter has a large display with 6000 counts and backlight, which makes it very easy to read from this multimeter. The measurement cycle is approximately 2.5 times per second.

The 1020R has multiple functions. For example, it has REL function, MIN/MAX function, hold function, and auto power off function that makes the batteries last longer.

Specifications

Max. DC voltage	1000 V
Max. AC voltage	1000 V
Max. Resistance	40.00 MΩ
Max. Capacitance	1000 µF
Frequency	99.99 Hz - 99.99 kHz
Counts	6000
Batteries	2 x AAA
Safety	CAT IV 300V / CAT III 600V / CAT II 1000V
Weight	250 g
Dimensions	155 x 75 x 40 mm

Accessories

The Kyoritsu 1020R comes with:

• Measurement leads
• Batteries (2x AAA)
• Wing-type holder
