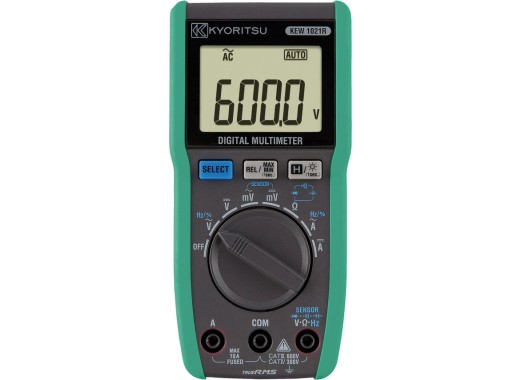

Kyoritsu 1021R multimeter
Details
The Kyoritsu 1021R is a versatile True RMS multimeter which can measure up to 600V/10A. This meter is able to measure voltages, currents, resistances, capacitances and even frequencies and duty cycles. Next to this, an audible continuity buzzer is also included. The large LCD display with backlight makes for perfect readability, even in low-light scenarios. In addition to this, the 1021R comes with two useful detachable holders to position the device in the best spot for the job.
The meter features automatic power-off if it isn't used for a longer period. Next to this, extra functionalities such as relative measurements, MIN/MAX measurements and a data-hold feature are also included, which makes this a rather complete multimeter.
Specifications
| Max. Voltage DC/AC | 600.0 V |
| Max. Current DC/AC | 10.00 A |
| Max. Resistance | 40.00 MΩ |
| Continuity buzzer | sound below 90 Ω |
| Max. Capacitance | 1000 µF |
| Frequency | 99.99 Hz - 99.99 kHz |
| Duty Cycle | 1.0 % - 99.9 % |
| True RMS | Yes |
| Display | 6000 counts & backlight |
| Safety category | CAT IV 300V & CAT III 600V |
| Power Source | 2x R03(AAA) batteries |
| Dimensions | 155x75x35 mm |
| Weight | 250g |
Accessories
The Kyoritsu 1021R comes with:
- Flat-type holder
- Wing-type holder
- Test leads
- Ceramic fuse
- Carrying case
- Batteries
Pros and cons
- Relative & MIN/MAX measurements
- Two included detachable holders
Downloads
| Kyoritsu 1021R Datasheet |  (2.08 MB) | Download |
