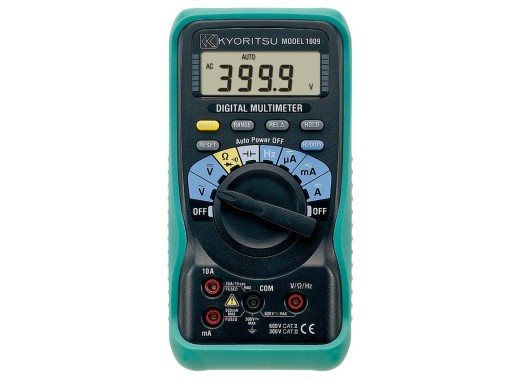

Kyoritsu 1009 multimeter
Details
The Kyoritsu 1009 is a simple but versatile digital multimeter which can measure up to 600V/10A. This multimeter features the most frequently used measurement functions such as; AC/DC voltage and current, resistance, continuity (buzzer), frequency and even duty cycle.
The meter is covered by a firm rubber bezel to make it suitable for use under rough conditions. In addition to this, it features an easy-to-use rotary knob to select the measurement functions. The different measurement ranges can either be selected automatically, or manually by the click of a button. Furthermore, relative measurements and a data-hold function are also included. To prevent the battery from draining if the user forgets to shut the device off, it is equipped with an auto power-off feature.
Specifications
| Max. Voltage DC/AC | 600V |
| Max. Current DC/AC | 10A |
| Max. Resistance | 40 MΩ |
| Continuity buzzer | sound below 50Ω |
| Max. Capacitance | 100µF |
| Frequency | 5.12 Hz - 10 MHz |
| True RMS | No |
| Display | 4000 counts |
| Safety category | CAT IV 300V |
| Power Source | 2x R6P(AA) batteries |
| Dimensions | 155x75x33 mm |
| Weight | 260g |
Accessories
The Kyoritsu 1009 comes with:
- Test leads
- Fuse
- Batteries
Pros and cons
- 4000 counts LCD display
- Automatic power-off
- Relative measurements possible
- Data-hold function
Downloads
| Kyoritsu 1009 datasheet |  (300.1 KB) | Download |
