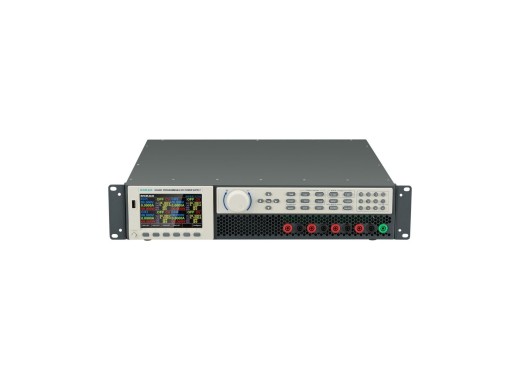

Korad KC6403 power supply
Details
The Korad KC6403 power supply is a versatile 4-channel linear power supply. The KC6403 is capable of outputting 720W of total power. Each of the four channels is independent and can output 3A of current and 60V of voltage. Furthermore, the channels have low latency, as low as microseconds, which also enables the completion of various multi-channel sequence wave outputs well-suited for complex test requirements. Afterwards, test data can be exported onto a USB disk.
The KC6403 additionally has oscilloscope functionality, which can simultaneously display current and voltage for the four channels on the power supply's LCD screen. The power supply also supports a LIST programmable output sequence, capable of going through 100 different consecutive settings.
Model overview
| KC3405 | KC6403 | |
|---|---|---|
| Total power | 600 W | 720 W |
| Voltage range | 0 - 30 V | 0 - 60 V |
| Current range | 0 - 5 A | 0 - 3 A |
| Price |
Specifications
| Outputs | 4 |
| Output switch | Each channel |
| Resolution | 1 mV / 0.1 mA |
| Ripple | ≤ 1 mVrms (CV)/ ≤ 5 mVrms (CC) |
| Protection | OVP, OCP, OTP |
| Interfaces | USB, RS232, GPIB, LAN |
| Display | 5-digit colour LCD |
| Dimensions | 430 x 97 x 448 mm |
| Weight | 19.8 kg |
Accessories
The Korad KC6403 power supply comes with the following accessories:
- 1x CD with manual and communication protocol
- 1x LAN cable
- 1x USB cable
- 1x Power cord
Pros and cons
- Isolated channels
- Low ripple
- Low noise
Downloads
| Korad KC communications protocol |  (70.19 KB) | Download |
| Korad KC3405/6403 user manual | (14.44 MB) | Download |
| Korad KC3405 KC6403 datasheet | (203.37 KB) | Download |
