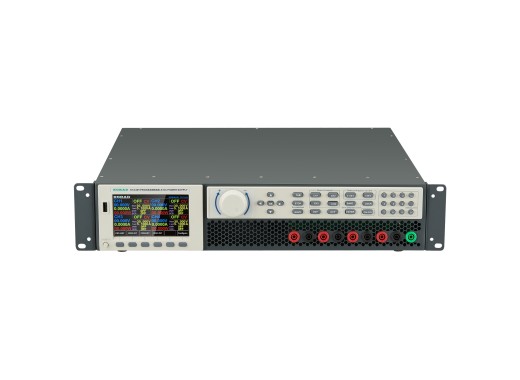

The Korad KC3405 power supply is a versatile 4-channel linear power supply. The KC3405 is capable of outputting 600W of total power. Each of the four channels is independent and can output 5A of current and 30V of voltage. Furthermore, the channels have low latency, as low as microseconds, which also complete various multi-channel sequence wave outputs well-suited for complex test requirements. Afterwards, test data can be exported onto a USB disk.
The KC3405 additionally has oscilloscope functionality, which can simultaneously display current and voltage for the four channels on the power supply's LCD screen. The power supply also supports a LIST programmable output sequence, capable of going through 100 different consecutive settings.
Model overview
|
KC3405
|
KC6403
|
| Total power |
600 W |
720 W |
| Voltage range |
0 - 30 V |
0 - 60 V |
| Current range |
0 - 5 A |
0 - 3 A |
| Price |
619.01
€619.01
Excl. VAT
|
669
€669.00
Excl. VAT
|
Specifications
| Outputs | 4 |
| Output switch | Each channel |
| Resolution | 1 mV / 0.1 mA |
| Ripple | ≤ 1 mVrms / ≤ 3 mArms |
| Protection | OVP, OCP |
| Interfaces | USB, RS232, GPIB, LAN |
| Display | LCD |
| Dimensions | 430 x 440 x 88 mm |
| Weight | 16.5 kg |
Accessories
- 1x CD
- 1x LAN cable
- 1x USB cable
- 1x Power cord
Pros and cons
- Isolated channels
- Low ripple
- Low noise
Downloads
(4.19 MB)
