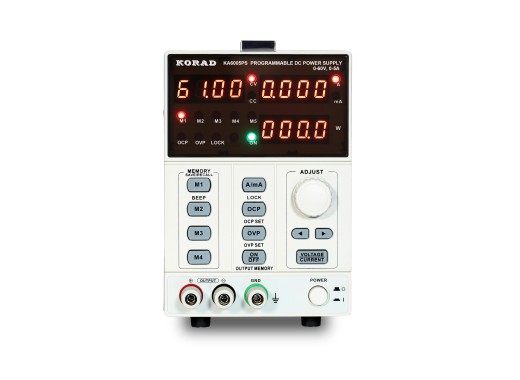

Korad KA6005PS power supply screw connectors
Details
The KA6005PS is a premium programmable DC power supply from Korad, and is suitable for all bench powering tasks in product development, education and repair. Furthermore, this supply is the improved version of the KA6005P, adding a separate power display, a current readback resolution down to 0.1mA below 1A, and a quieter temperature-controlled fan.
This supply delivers up to 60V and 5A for 300W of total power, and sets voltage and current with 10mV and 1mA resolution. The output has a dedicated on/off switch, four memory presets store and recall settings, and overvoltage, overcurrent, reverse polarity and short circuit protection are included. A USB and RS232 connection allows remote control through the supplied software.
Model overview
| Model | KA6005PS screw connectors | KA6005PS safety connectors |
|---|---|---|
| Output connectors | Screw connectors | Safety connectors |
| Price |
The two models differ only in the output connectors on the front. This model has screw connectors, which accept both banana plugs and bare wires. A version with shrouded 4mm safety connectors is also available, listed in the model overview above.
Specifications
| Total power | 300 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 60 V |
| Current range | 0 - 5 A |
| Resolution | 10 mV / 1 mA |
| Readback resolution | 10 mV / 0.1 mA (below 1 A) |
| Ripple | < 1 mVrms |
| Protection | OVP, OCP, reverse polarity, short circuit |
| Interfaces | USB, RS232 |
| Display | LED |
| Dimensions | 305 x 110 x 166 mm |
| Weight | 8.3 kg |
Accessories
The Korad KA6005PS power supply is delivered with:
- 1x USB cable (USB-A to USB-B)
- 1x power cord
Pros and cons
- Low fan noise
- Up to 0.1mA current readback resolution
- Separate power display
- Single output
Downloads
| Korad KA6005PS datasheet |  (539.77 KB) | Download |
