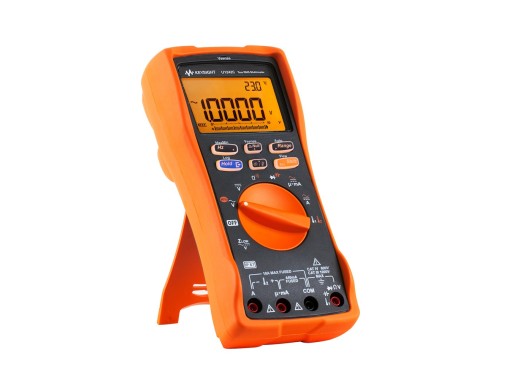

Keysight U1242C multimeter
Details
The Keysight U1242C is a handheld multimeter with a 10000 count display and a standard DCV
accuracy of 0.09%.
The multimeter can withstand a fall of 3 meters and is dust and water resistant. This together with the built-in LED flashlight
ensures that this multimeter is very robust.
In addition to the standard measuring functions, this multimeter also has a low impedance, temperature difference and Vsense non-contact function.
This multimeter also has the ability to measure harmonic proportions in a signal.
The measurement results can be read locally on the multimeter
and can then be saved and transferred to a PC with an IR-USB cable.
Specifications
| Measurement specifications | |
| DC voltage (accuracy) | 100 mV - 1000 V (0.09%+2cnts) |
| AC voltage (accuracy) | 100 mV - 1000 V (1%+3cnts) |
| DC current (accuracy) | 1000 μA - 10 A (0.1%+2cnts) |
| AC current (accuracy) | 1000 μA - 10 A (1%+3cnts) |
| Resistance | 100 Ω - 100 MΩ (0.2% + 2 cnts) |
| Frequency | 100 Hz - 10 MHz (0.02% + 1 cnts) |
| Capacitance | 1000 nF - 10 mF (1% + 5 cnts) |
| Temperature | –200°C - 1372°C (1% + 1°C) |
| Continuity | ✔ (with beeper) |
| Diode test | ✔ |
| Reading speed | 40 readings/s |
| Display | 4 1/2 digit, 10000 counts |
| Working time batteries | 400 hours |
| Security | CAT III 1000 V / CAT IV 600 |
| IP-rating | IP-67 (dust and water resistant) |
| Dimensions | 198x96x57 mm |
| Weight | 545 g |
Accessories
The Keysight U1242C comes standard with:- 3 years warranty
- Testing leads set
- IR-to-USB cable
- Start guide
- 4x 1.5V batteries
- Calibration certificate
Downloads
| Datasheet U1242C |  (3.6 MB) | Download |
