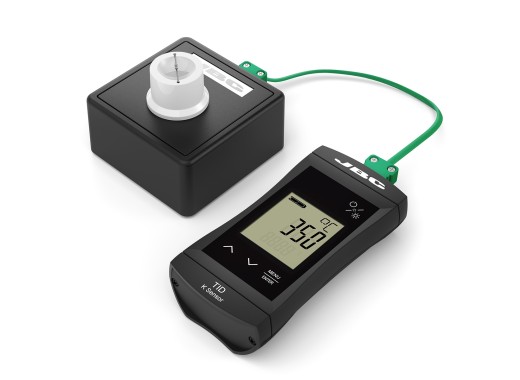

JBC TID-B digital soldering tip thermometer
Details
The JBC TID-B digital soldering tip thermometer is a high-precision and ESD-safe thermometer for easy and repetitive tip-temperature reading. It can display temperature readings in degrees Celsius and Fahrenheit and take up to three measurements per second.
This thermometer is designed to work with a Type K Thermocouple sensor and includes one unit. Additionally, it can also work with a PH218 thermocouple sensor, which is not included. The TID-B is powered by a 2 x AA battery (not included) with a 4-stage battery status indicator.
Protective storage case included.
Specifications
| Measuring range | -65 °C - 1200 °C |
| Accuracy | ±0.1% of measuring value ±0.1 full scale |
| Measuring frequency | 3 measurements/second |
| Probe connection | Thermocouple Type K |
| ESD safe | Yes |
| Power supply | 2x AA |
| Battery life | > 2500h with alkaline batteries (without backlight) |
| Dimensions | 255 x 210 x 70 mm |
| Weight | 0.77 kg |
Pros and cons
- Accurate measurement
- Easy operation
Downloads
| JBC TID manual |  (1.41 MB) | Download |
