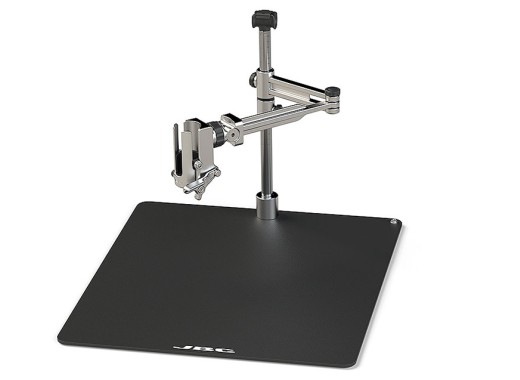

JBC RWB-B adjustable rework arm

The RWB-B adjustable rework arm supports the hot air heater. The rework arm is easy in use, because it allows you to perform hands-free operation. Additionally, the tool holder can be adjusted in position according to the working needs. Adjustments can be made in height and angle as well as rotation, this makes sure that you can always operate in the preferred position. The RWB-B has a hose clamp which will keep the heater hose away from the work area and thus keep it clear of any obstacles. Both vertical axis and tool holder articulation are scaled. Due to this, repetitive soldering tasks can be done easily.

The RWB-B rework arm is suitable for the JBC JTSE and JBC TESE heater hose sets, due to an included adapter piece. The base plate is especially designed for working with the PHBE convection preheater, but also compatible for standard (de)soldering uses.

Are you looking for a rework arm suitable for the PHSE-IR preheater, but that can also be used for standard (de)soldering uses? Have a look at the JBC RWS-D adjustable rework arm . The RWS-D is smaller and lighter and designed for the PHSE-IR preheater, but can also be used for standard (de)soldering uses.

Specificaties

Base plate dimensions	480 x 550 mm
Dimensions	386.5x 480 x 550 mm
Weight	16.99 kg
