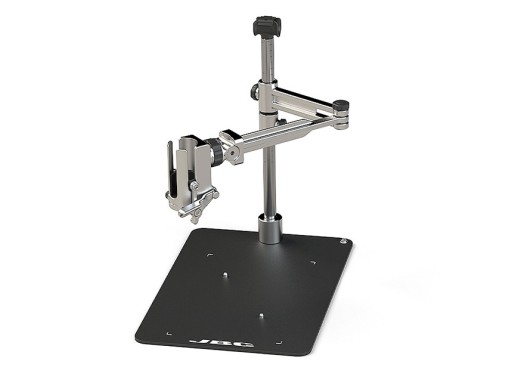

The JBC RWS-D adjustable rework arm supports the hot air heater. This rework arm is perfect whenever hands-free operation is needed. Furthermore, the arm can be adjusted in height as well as work position. This will make sure that it can always adjust according to your needs. The rework arm has a hose clamp which will keep the heater hose away from the work area and thus keep it clear of any obstacles. The tool holder allows rotation as well as inclination adjustment. Both vertical axis and tool holder articulation are scaled. Due to this, repetitive soldering tasks can be done easily.
The RWS-D is suitable for the JBC JT and JBC TE heater hose sets, due to an included adapter piece. The base plate is especially designed for working with the PHSE IR preheater, but also compatible for standard (de)soldering uses.
Comparable to this rework arm is the
JBC RWB-B adjustable rework arm
. The RWB-B is bigger and heavier. Furthermore, the RWB-B is designed for the PHBE convection preheater, but can also be used for standard (de)soldering uses.
Specifications
| Base plate dimensions |
270 x 410 mm |
| Dimensions |
270 x 410 x 386.5 mm |
| Weight |
5.1 kg |
Pros and cons
- Adjustable
- Hands-free operation possible
Downloads
(1.49 MB)
