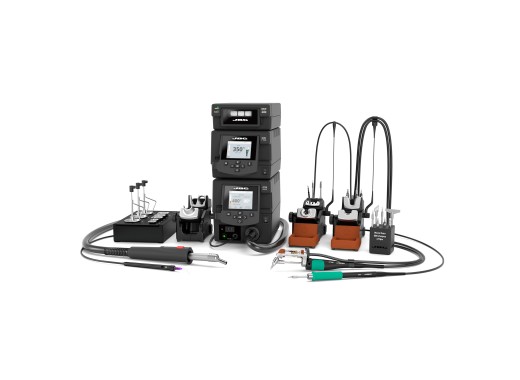

JBC RMSD-2QB (de)soldering station

The JBC RMSD-2QB is an all-in-one station for soldering and rework purposes, including the use of hot air. This set contains a vacuum pump, a soldering station, a hot air station, and the corresponding handles and holders.

Soldering

The DDE control station provides connections for two soldering tools that can be used at the same time. A wide range of JBC modular series soldering and desoldering tools can be connected to this station. Included in this set is the T245 iron.

The large 2.8" TFT colour screen makes installing and managing temperatures easy. Furthermore, this station offers detailed real-time graphs displaying temperature and power data. The DDE also includes an extensive menu where various user settings are easily adjustable and can even be assigned to specific tools. The control unit features a USB-A port for firmware updates and a USB-B port for PC communications. Also, the unit has an FAE connector for remote control or FAE fume extractor connection.

Logging

The station creates real-time graphs that display temperature and power. These graphs can be stored easily on a USB stick at the front of the station. At the back of the station, a second USB port connects the station to a computer.

Desoldering

The MSE-B is the electric desoldering module that provides the required vacuum. It offers a suction capacity of 35 SLPM. This will be connected to the DDE station to a DT530 angled desoldering iron. This tool is ideal for desoldering through-hole components. The tip of the desoldering iron should only be changed when hot, and a tool for safe hot-tip replacement is included.

Hot air

The set includes the JTSE hot air station for controlling the rework task using temperature and airflow profiles. The hot air system includes a stand, SCH cartridge & tips holder, heater hose set, T260 pick & place handle, and an ESHT magazine with protectors and extractors.

Holders

This soldering station includes stands and holders for each tool. These stands feature intelligent functions, such as automatically cutting off power to the iron when placed in the holder, significantly extending the life of the tip. In addition, they include systems for safe hot-tip replacement, eliminating the need to wait for the tip to cool down before swapping.

Extra (de)soldering tips

No soldering cartridges for the soldering iron are included with the station. However, one of the advantages of JBC systems is the wide variety of available tip shapes suitable for virtually any application (see the blue button below). These cartridges feature integrated heating elements for faster heat-up and better thermal transfer.

No additional nozzles are included for desoldering, but various compatible nozzles are available, starting at diameters as small as 0.6 mm (see the second blue button below).

This set is part of the JBC modular line. Are you looking for sets for different applications? You can visit the JBC Modular Line page to learn more about the modular line.

The default 2-year warranty can be extended to 3 years by registering your device.

Specifications

Accessories

The JBC RMSD-2QB 2-tool rework station includes:

• 1x DDE 2-Tool control unit (230V)
• 1x JTSE power hot air control unit
• 1x MSE-B electric desoldering module
• 1x T245 iron
• 1x DT530 angled desoldering iron
• 1x D530003 desoldering nozzle (1.0 mm)
• 1x JTT heater hose set
• 1x ADS stand for T210/T245
• 1x DTS stand for DT530
• 1x JTS stand for JTT
• 1x SCH cartridge & tips holder
• 1x ESHT magazine with protestors & extractors
• 1x T260 pick & place handle
• 1x PH218 thermocouple type K
