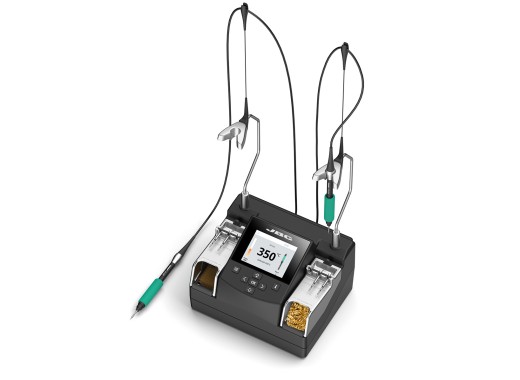

The JBC NANE soldering station is a high end soldering station specifically designed for small components that require high precision. Two tools can be connected to the station and used simultaneously. The included soldering irons are ideal for small-scale work such as smd soldering with for instance 0402, 0201 or 01005 components.
The station offers a power of 14 Watt to both connected tools, which is more than sufficient for the applications for which the supplied tools are intended.
The temperature for each soldering iron can be adjusted separately from 90 - 450 ºC and can be precisely controlled to ±3ºC.
The station offers various settings that can be changed via the menu.
For instance, the sleep timer can be set, but various other variables can also be set to simplify the work.
It is also possible to operate the station from a computer, and the station can display graphs about power and temperature on the display and on a connected computer.
The station features receptacles and a point-exchange system for each tool, which can be used to change the tips even when they are still hot.
When the soldering irons are placed in their holders they will be switched to a hibernation mode. This cools them down, which extends the lifespan of the tips drastically.
When they are picked up again, they automatically switch on in to be on temperature within a few seconds.
It is also possible to connect the station to a 'pedal', which can be used to put the tools into sleep mode immediately when you press the pedal.
The soldering station can work together with a JBC soldering robot, and can communicate via RS-232. This offers extensive possibilities for automation of soldering processes.
The soldering station comes with two NT115-A soldering irons. The NT115-A is a slim soldering iron with a very small Tip-to-Grip distance for maximum control. The tips which belong to the NT115-A are very accurate and have a diameter between 0.1 and 0.8mm.
The large manual control and the small tips make this soldering iron very suitable for the soldering of SMD components. The bolt provides a cable length of 1.2 meters which prevents obstruction during work.
If you prefer to make use of soldering tweezers, then the
is a good solution (sold separately).
Power | 2 x 14 Watt |
Temperature range | 90 - 450 ºC |
Heating time | ~ 2 sec |
ESD - safe |
Yes
|
Automatic stand-by |
Yes
|
Tip to ground resistance | < 2 Ω |
Interfaces | USB Device/ Host / Pedal / RS-232 |
Weight | 2.25 kg |
This soldering station is supplied including:
The soldering tips are supplied in a case in which they can be stored in a protected manner.
