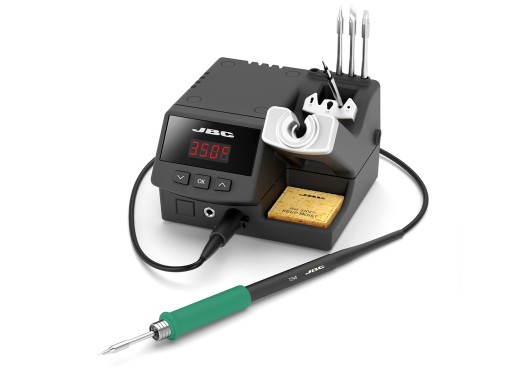

JBC LCB soldering station

The JBC LCB soldering station has the smallest footprint of any soldering station in the JBC range, with the high peak power of 130W. The soldering station has a temperature range from 90 to 450°C, which can be set using the buttons below the display, and due to its high power, it only takes 2 seconds to reach the desired temperature, which can be read from the digital screen.

The built-in sleep & stand-by modes help prolong the life of soldering tips. As a result, soldering tips can last up to 5 times longer. The soldering station comes with an ergonomic hand piece, suited for the soldering of both SMD components and high power applications. There are no tips included. C245 soldering tips are available here.

JBC soldering stations distinguish themselves from other stations by using active tips. This results in a much faster heating time and also in a much better temperature stability during soldering. Because the heating element and temperature sensor are both entirely situated in the tip, the temperature can be controlled better. Additionally, it is possible to replace the tips without waiting for them to cool, as the station features a built-in quick tip changer. Moreover, there is an option available to replace the sponge with a brass wool cleaner.

Finally, the LCB is also compatible with the T210 handle, which works with the C210 series soldering tips. The C210 tips are smaller in size, best suited for the finer soldering tasks.

The default 2-year warranty can be extended to 3 years by registering your device.

Specifications

Accessories

The LCB soldering station comes with:

• Soldering iron (T245)
• Sponge (S2027)
• Power cord

Downloads

JBC LC-2BA user manual

(2.98 MB)

Download
