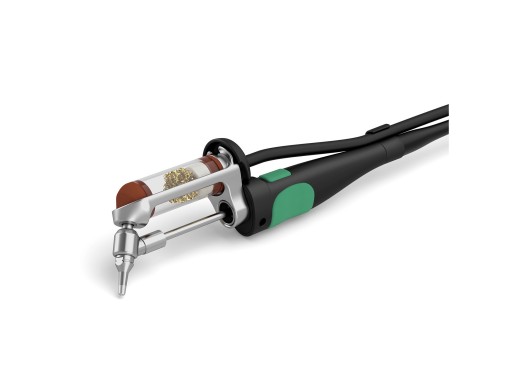

JBC DT530-A angled desoldering iron

The JBC DT530-A is a 160W angled desoldering iron, used for desoldering jobs of through-hole components and excess solder during SMD rework. Unique about this product is the lightweight and ergonomic shape. This allows comfortable and efficient desoldering work, especially under the magnifying glass. A single desolder nozzle is included.

It must be connected to a JBC MSE-A or a JBC MVE-A desoldering pump and (if not included with the control unit) requires a tool stand as well. The suction power from the MSE or MVE pumps ensures optimal work quality of the DT530-A by effectively desoldering. It also requires the DT-SB stand in order to reduce the tip temperature below the solder melting point. It's build-in sleep-mode cuts off the power supply which prevents oxidation. As a result, the nozzle life lasts up to 5 times longer.

To control and operate this product a JBC DDE-2C or JBC DME-2A control unit is needed to regulate the temperature.

Please note, this product only functions with a MSE/MVE pump, together with the DDE/DME control units and requires the DT-SB stand and the D530 desoldering nozzle range.

Buy your D530 nozzles here

Specifications

Accessories

The JBC DT530-A comes by default with:

• Desoldering nozzle (already installed) (D530003)
• 2x Glass solder collector (DT20)
• 5x Frontal gasket (DT30)
• 5x Rearward gasket (DT35)
• Spanner (DT50)
• 10x Wool filter (DT10)
• 10x Metal filter (DT11)
• Heat-resistant gripper (DT60)
• Cleaning brush (0008297)
• Metal brush (CL6217)
• Tip cleaning set (0965970)
• Helical tip-cleaning rods (0965760)
• Allen screwdriver 2.5 mm (0033474)
