Hakko FM-2024-33 desoldering module
Promotion! Apply this code in the shopping cart to get 10% discount: HAKKO10
Details
Attention! This desoldering pump is intended for use on a central compressed air system.
The Hakko FM-2024-33 desoldering module can be connected to the Hakko FM-203 soldering station to enable it to desolder.
The module contains a powerful control box that can deliver an airflow of up to 20L/min.
To make desoldering easy, the handle of the desoldering gun can be removed to increase the ease of use.
Pay attention!The FM-2024-33 is supplied without nozzles, these should be ordered separately. Suitable nozzles for this module are the Hakko N3 series nozzles.
Buy your N3 desoldering nozzles here
Specifications
| Power | 70W (24V) |
| Temperature range | 350-450℃ |
| Air displacement | 20 SLPM [L/min] |
| Static pressure | 700 mm Hg |
| Resistance point to ground | < 2Ω |
| Potential point to ground | < 2mV |
| Heating element | Composite |
| Cord length | 1.2m |
Accessories
The Hakko FM-2024-33 is supplied with:

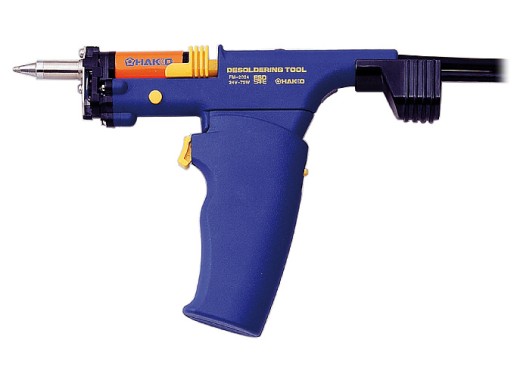

- FM-2024-02 desoldering gun
- C1528 control box
- FH 200-05 desoldering stand
- 599B-02 cleaning wire
- Ceramic filters (10 pieces)
- Heat resistant plate
- Nozzle remover
- Cleaning drill
- Connecting cable
