You don't need to charge it and you don't need to buy expensive batteries because it doesn't have any.
Connect it to your phone and it will last as long as you have power in your phone.
The app need to be better and it has been, but there is still a few bugs left.
Something i would like to see is an application from InfiRay for Windows to use it on my computer.
I know there is one out already from RMG Engineering, but it is way too pricey.

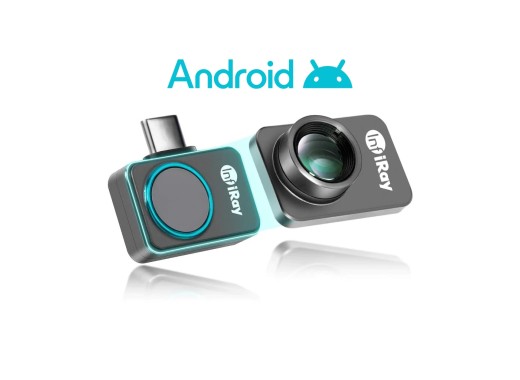

InfiRay P2 Pro thermal camera for Android
Details
Tip:
The InfiRay (Xinfrared) P2 Pro is a professional camera module that can easily turn an Android smartphone into a thermal imaging camera. Since the camera has a 256 x 192 IR resolution, it will provide a clear image with a fast response. Moreover, the camera works in a wide temperature range of -20 to 550 degrees Celsius with an accuracy of ±2° or ±2% and a NETD of ≤40mK. The InfiRay P2 Pro includes two measurement modes, one for elevated skin temperature inspection and one for industry applications.
The functions of the camera include troubleshooting HVAC problems, investigating heat source issues around the house and checking circuit boards. The temperature measurement range and temperature correction parameters can be fully adjusted which allows for secondary analysis of thermal imaging data. Picture-in-picture mode is fully supported. Fusion mode, on the other hand, is not present on this camera, but on the other hand, it is not a major shortcoming either, since the camera has high resolution. The InfiRay P2 Pro is also one of the most compact and lightest cameras around.
A macro lens is also included, which can be used for PCB inspection.
This is the Android version with a USB-C connection. It cannot be used on a iOS device with a USB-C connection. There is also an iOS version with a lightning connection.
Specifications
| Temperature range | -20 to 550 ℃ |
| Accuracy | ±2 ℃ or ±2% (whichever is greater) |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | ≤40mK @25 ℃ |
| Frame rate | 25 Hz |
| FOV | 56° x 42.2° |
| Display | External |
| Colour palettes | White/black-hot + 6 pseudo colors |
| Connection | USB-C |
| Dimensions | 27 x 18 x 9.8 mm |
| Weight | 9 g |
Accessories
The InfiRay P2 Pro thermal camera for Android comes with:
- Macro lens
- Type-C male to female extension USB cable
Pros and cons
- Very compact and lightweight
- Includes macro lens for PCB inspection
- Regular software updates
Downloads
| Infiray P2 pro datasheet |  (397.8 KB) | Download |
| Eleshop P2 Pro FAQ | (173.36 KB) | Download |
| Infiray Mobile App Installation Instructions | (47.12 KB) | Download |
