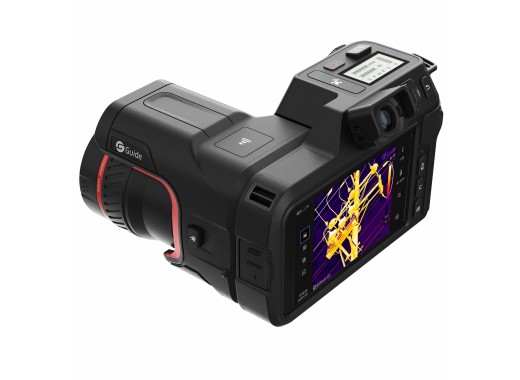

Guide IR PT850S thermal camera
Details
The Guide IR PT850S thermal camera with a rotatable screen can measure temperatures across a wide range of -40°C to 800°C and has a high IR resolution of 1024x768 pixels. With its rotatable lens, the PT850S can quickly swap between long- and close-range temperature measurements. The thermal camera can make both high-quality photos and videos, which can be transferred via Wi-Fi to your device for further analysis. The video material can be captured in MP4 format with audio or in lrgd format for temperature analysis. Moreover, this thermal camera provides a very fast operation by using the focus motor and a professional laser rangefinder to achieve autofocus in only 0.4 seconds. The PT850S also has AI voice recognition and provides four image modes: IR, visible light, PIP, and MIF. Finally, to achieve high-quality imaging, the infrared pixel count can be increased to 4 times its original value.
Additional accessories for the PT850S, such as a high-temperature lens, can be ordered by contacting Eleshop.
Model overview
| Model | PT450S | PT650S | PT850S | PT870S |
|---|---|---|---|---|
| IR resolution | 480 x 360 | 640 x 512 | 1024 x 768 | 1280 x 1024 |
| Super resolution | 960 x 720 | 1280 x 1024 | 2048 x 1536 | 2560 x 2048 |
| Temperature range | -40 to 650 °C | -40 to 650 °C | -40 to 800 °C | -40 to 800 °C |
| Focal distance | 12.94 mm | 17.6 mm | 27.7 mm | 35 mm |
| Digital zoom | 1x - 35x | 1x - 40x | 1x - 50x | 1x - 50x |
| Price |
Specifications
| Accuracy | ±1 °C or ±1% (whichever is greater) |
| NETD | ≤15 mK |
| Frame rate | 50 Hz / 9 Hz |
| FOV | 25° x 20° |
| Focusing modes | Manual / Automatic / Touch autofocus / Continuous autofocus |
| External interface | USB-C, DC (12V), SD card slot, Micro HDMI, UNC ¼ "-20 (Tripod mounting) |
| Laser | 630~670 nm, Class 2 laser, <1 mW, indicating the measured target and laser ranging (0.1 m to 35 m) |
| Display | 5.5" LCD touch screen, 1920 x 1080 |
| Eyepiece | OLED screen, 1920 x 1080 |
| Colour palettes | 15: White Hot, Iron Red, Arctic, Rainbow and more |
| Storage | Local storage (64 GB) and SD card (128 GB and up to 256 GB) |
| Battery | ≥4 hours |
| IP rating | IP54 |
| Dimensions | 191 x 171 x 118 mm |
| Weight | 1.78 kg |
Accessories
The PT850S comes by default with:
- 1x Lens cover
- 2x Lithium-ion battery
- 1x Desktop charger
- 1x Power adapter
- 1x Adapter plug
- 1x USB-A to USB-C cable
- 1x USB-C to Ethernet adapter
- 1x Micro HDMI to HDMI cable
- 1x SD card (128 GB)
- 1x Wrist strap
- 1x Shoulder strap
- 1x Carrying bag
- 1x Safety box
Pros and cons
- Very suitable for thermography experts
- Battery is replaceable
- High IR resolution
