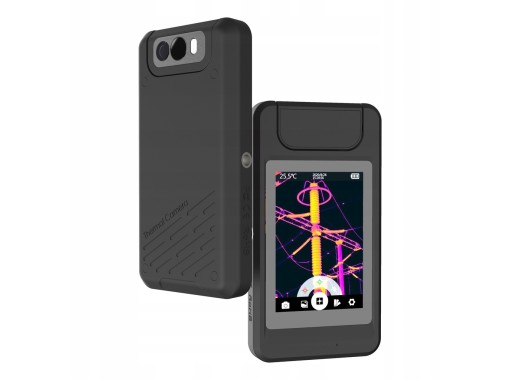

InfiRay P200 thermal camera
Details
The InfiRay P200 is a pocket-sized thermal camera with a 256 x 192 pixels IR resolution and a -20 °C to 550 °C temperature range. Morever, the thermal camera is a non-contact inspection tool which makes it great for finding hidden deficiencies of electrial equipment in a safe manner. The 2 million pixel visible light camera can be used for fusion and PIP mode for more efficient analysis. Furthermore, the P200 has 90 degrees rotatable camera which is ideal for inspecting lower and narrow spaces. Additionally the P200 features a 3.5" LCD touchscreen, a 6 hour battery life, LED fill light, 16GB memory, usb plug and play analysis, alarm threshold settings, multi area real time alarm and a built-in Wi-Fi function which allows users to share information quickly and easily or store it on the cloud. This camera can also be operated with only one hand and support voice and text annotation. Finally, the thermal camera has an IP54 rating which means that it is protected from water sprays from all directions and against contamination from dust and other particles.
Specifications
| Temperature range | -20 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | <40 mK |
| Frame rate | 25 Hz |
| FOV | 56° x 42° |
| Emissivity | 0.01 ~ 1 adjustable by 0.01 increments |
| Display | 3.5" (960 x 640 Px) |
| Colour palettes | White Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Rainbow HC, RdGy |
| Image modes | IR, VIS, PIP, Fusion |
| Storage | 16GB micro-SD card (built-in) |
| Battery | Up to 6 hours |
| Dimensions | 142 x 76 x 19 mm |
| Weight | ≤ 210 g |
Accessories
The InfiRay P200 comes by default with:
- Portable bag
- Wrist strap
- Type-C USB cable
Pros and cons
- Built-in WiFi
- Rotatable camera
Downloads
| InfiRay P200 datasheet |  (1.07 MB) | Download |
| InfiRay P200 user manual | (190.54 KB) | Download |
