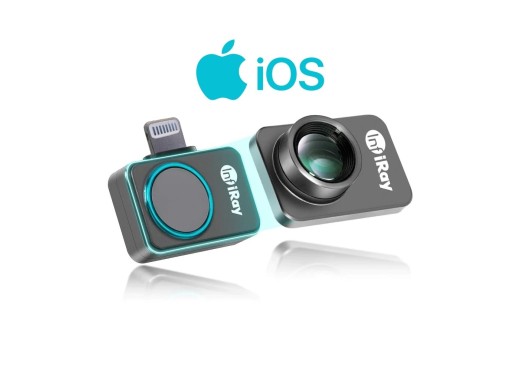

InfiRay P2 Pro thermal camera for iOS

Tip:

If you own an iOS smartphone with a USB-C connector, you can use the InfiRay lightning-to-USB-C adapter to connect your device to the InfiRay P2 Pro for iOS. A standard lightning cable that comes with your device won't work with this adapter. Instead, use the InfiRay lightning-to-USB-C cable.

The InfiRay (Xinfrared) P2 Pro is a professional camera module that can easily turn an iOS smartphone into a thermal imaging camera. Since the camera has a 256 x 192 IR resolution, it will provide a clear image with a fast response. Moreover, the camera works in a wide temperature range of -20 to 550 degrees Celsius with an accuracy of ±2° or ±2% and a NETD of ≤40mK. The InfiRay P2 Pro includes two measurement modes, one for elevated skin temperature inspection and one for industry applications.

The functions of the camera include troubleshooting HVAC problems, investigating heat source issues around the house and checking circuit boards. The temperature measurement range and temperature correction parameters can be fully adjusted which allows for secondary analysis of thermal imaging data. Picture in picture mode and fusion mode is fully supported. The InfiRay P2 Pro is also one of the most compact and lightest cameras around.

A macro lens is also included, which can be used for PCB inspection.

This is the iOS version with a lightning connection. There is also an Android version with a USB-C connection. It cannot be used on a iOS device with a USB-C connection.

Specifications

Accessories

The Infiray P2 Pro iOS is supplied including:

• Macro lens
• Lightning to lightning extension cable

Downloads

Infiray P2 pro datasheet

(397.8 KB)

Download
