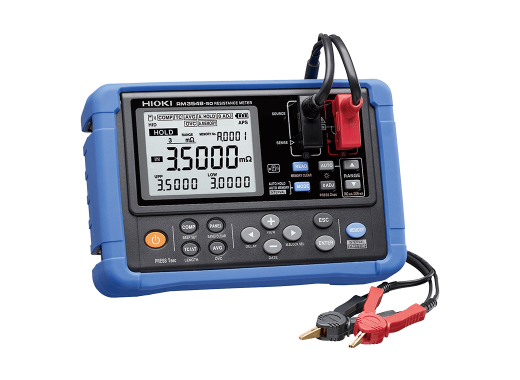

Hioki RM3548-50 milliohm meter

The Hioki RM3548-50 milli-ohmmeter is an easy-to-use, portable and affordable milli-ohmmeter. The milli-ohmmeter uses 4-wire measurements to ensure the resistance is measured accurately with a resolution up to 0.1μΩ. Moreover, the meter can correct its measurement based on temperature using the temperature correction function, which is performed by the supplied temperature sensor.

In addition, the RM3548 has a memory of 1000 data points and can store user settings and data. The meter can measure the resistance in 10 different ranges, from 3mΩ up to 3MΩ. For each resistance range, the accuracy is remarkably high, which is around 0.02%. The milli-ohmmeter only has an internal trigger.

Moreover, the meter has a backlit LCD. The RM3548-50 is powered by 8 x AA batteries, providing up to 10 hours of continuous operation. The meter is also equipped with a USB port to connect the meter to a computer.

Specifications

Options

These options for the RM3548-50 milli-ohmmeter are available at Eleshop.

Straight test lead (9465-11)	Straight test leads are great for deep connectors, open spaces, and quick testing.	9465-11 498 €498.00 Excl. VAT Info Add to Cart
Test leads with kelvin clips (L2107)	Test leads with kelvin clips are great for clamping down the test leads.	L2107 168 €168.00 Excl. VAT Info Add to Cart

Accessories

The RM3548-50 comes by default with:

• 1 x Clip Type Lead L2107
• 1 x Temperature Sensor Z2002
• 1 x Protector case
• 8 x AA batteries
• 1 x USB cable (A to mini-B)
• 1 x safety strap
• 1 x spare fuse

Downloads

RM3548 manual	(18.74 MB)	Download
RM3544, RM3548 datasheet	(4.73 MB)	Download
