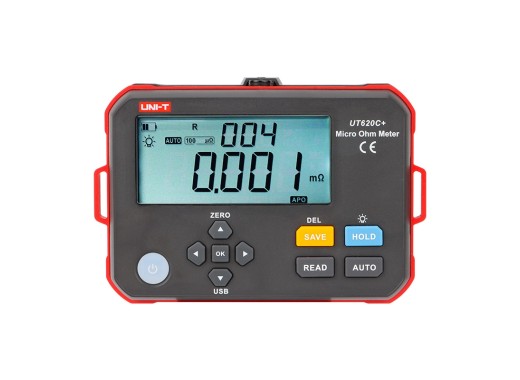

UNI-T UT620C+ micro-ohmmeter
Details
The UT620C+ micro-ohmmeter is an easy-to-use, lightweight and affordable micro-ohmmeter. The ohm meter uses 4-wire measurements to ensure the resistance is measured accurately. In addition, the UT620C+ has a memory of 500 slots to store user settings and data. The meter can measure the resistance in 8 different ranges, from 0.001mΩ up to 300 kΩ. For each resistance range the accuracy is around 0.1%. Moreover, the meter has a backlit LCD display, with a low battery indicator. The device will power off automatically after 15 minutes of inactivity. Finally, the UT620C+ can be connected to a pc, through the provided software you are able to export measurements, set the measurement mode and set the sample interval.
Specifications
| Resistance measurements | |||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
| Sample rate | 2 measurements/s | ||||||||||||||||||||||||||||||||||||
| Trigger | Internal, Manual, External | ||||||||||||||||||||||||||||||||||||
| Interface | USB C | ||||||||||||||||||||||||||||||||||||
| Memory | 500 sets | ||||||||||||||||||||||||||||||||||||
| Dimensions | 161 x 117 x 68 mm | ||||||||||||||||||||||||||||||||||||
| Weight | 0.48 kg | ||||||||||||||||||||||||||||||||||||
Accessories
The UT620C+ comes by default with:
- USB-C to USB cable
- Measurement probes
- Charging cable + rechargeable battery
Pros and cons
- Compact, easy to carry
Downloads
| UNI-T UT620C+ quick guide |  (71.9 MB) | Download |
