Hioki PW3335 power meter
Details

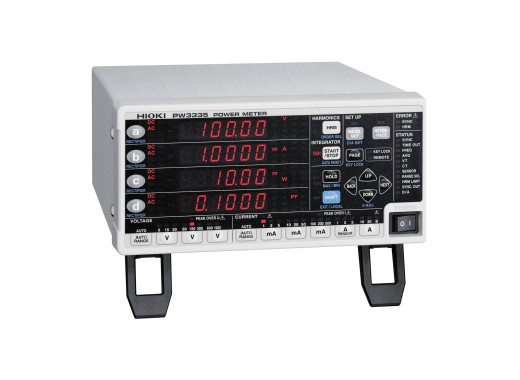

The Hioki PW3335 meter is a single-channel AC/DC power meter for single-phase, two-wire measurements. It can be used for high-precision power measurement and energy-saving assessments in multiple electrical devices and installations. The power meter can measure various parameters, such as voltage, current, power factor, and frequency. The PW3335 has a voltage range of 6V to 1000V and a current range of 1mA to 20A. It also offers a power accuracy of ±0.15% of reading, making it suitable for precise laboratory measurements and automated test environments. The PW3335 has an intuitive 99.999 count LED display that can display up to 4 parameters simultaneously. Finally, the power meter has both LAN and RS-232C communication interfaces to remotely control the device.
Specifications
| Display resolution | 99.999 counts |
| Voltage range | 6 V - 1000 V |
| Current range | 1 mA - 20 A |
| Frequency | DC, 0.1 Hz - 100 kHz |
| Other functions | Diode, Continuity, Min/Max record, Peak/Data hold, Auto power-off |
| Power supply | 100 V - 240 V AC, 50/60 Hz |
| True-RMS | Yes |
| Data logging | No |
| Display | 7-segment LED |
| Connectivity | LAN, RS-232C |
| Dimensions | 210 x 100 x 245 mm |
| Weight | 3 kg |
Accessories
The Hioki PW3335 power meter is delivered with:
- Power cord
- 2x voltage and current input terminal safety cover
- 4x safety cover installation screws (M3 × 6 mm)
Pros and cons
- Can display voltage, current, power, and power factor simultaneously
- Very accurate readings, especially for stand-by currents
- Only 1 phase
Downloads
| Hioki PW3335 user manual |  (8.05 MB) | Download |
