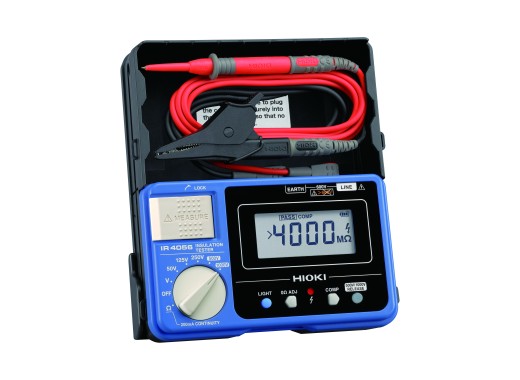

Hioki IR4056-20 insulation resistance tester
Details
The Hioki IR4056-20 is a 5-range, 50V to 1000V digital insulation resistance tester. The tester has 5 different test modes, ranging from 50V to 1000V where it measures the insulation resistance. Additionally, the device has a single test mode or continuity test, where a threshold can be set manually. The device delivers an immediate pass/fail indication after testing. Furthermore, the IR4056-20 features a voltage and resistance meter. It is recommended to perform AC/DC measurements beforehand to ensure the voltage is measured accurately and matches the optimal testing range. Finally, the IR4056 is delivered inside a robust casing and is intuitive to use, which makes it ideal for tests in the field performed by technicians.
Specifications
| Insulation measurement range | |
| Test voltage | 50V / 125V / 250V / 500V / 1000V (0~20%) |
| Insulation resistance | 0.001 MΩ - 4 GΩ (±3%+5) |
| Other measurements | |
| Max. DC voltage | 600.0 V (±2%+5) |
| Max. AC voltage | 600.0 V (±2%+5) |
| Other functions | Continuity test, high voltage prevention, LCD backlight |
| Power supply | 4x AA batteries |
| Dimensions | 159 x 177 x 53 mm |
| Weight | 0.6 kg |
Accessories
The Hioki IR4056-20 is delivered including:
- 1x test lead set
- 4x AA Batteries
- 1x Tools case
- Neck strap
Pros and cons
- Price-quality ratio
- Intuitive
- Robust casing
Downloads
| IR4056-20 manual |  (4.62 MB) | Download |
| Insution tester series datasheet | (5.94 MB) | Download |
