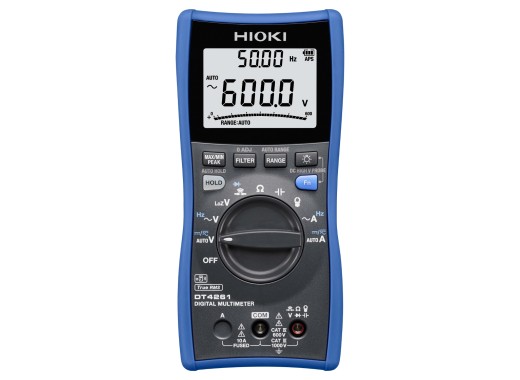

Hioki DT4261 multimeter
Details
The Hioki DT4261 multimeter is a True-RMS multimeter that performs high-accuracy AC and DC measurements. The multimeter is of premium build quality with an IP54 rating, making it resistant to dust and splashing water. Additionally, its many features make it ideal for professional use. The DT4261 can measure voltage, current, resistance, frequency, and capacitance. Furthermore, the multimeter has an LCD screen with 6,000 display counts and ensures accurate troubleshooting with both continuity and diode checks. The multimeter also provides visual warnings: a red display backlight for excessive input and an orange light for the HOLD operation.
This multimeter connects to a computer via USB; however, data can also be wirelessly transferred when combined with the Z3210 Bluetooth adapter. The adapter (sold separately) enables easy data transfer and direct Excel input.
Specifications
| Display resolution | 6,000 counts |
| Max. Voltage | 1000 V (DC / AC) |
| Max. Current | 10 A (DC / AC) |
| Max. resistance | 60 MΩ |
| Max. capacitance | 10 mF |
| Frequency | 99.99 Hz - 99.99 kHz |
| Other functions | Mis-insertion prevention shutters, fuse check function, zero-adjustment, display value hold, auto hold, MAX/MIN value display, PEAK value display, auto-power save |
| Power supply | 3x LR6 (AA) battery |
| True-RMS | Yes |
| Data logging | Yes |
| Connectivity | USB, Bluetooth (optional) |
| Dimensions | 185 x 87 x 47 mm |
| Weight | 480 g |
Accessories
The Hioki DT4261 multimeter comes with the following accessories:
- 1x L9300 test lead
- 3x LR6 (AA) alkaline battery
Pros and cons
- Premium build quality
- Suited for professionals
- No temperature measurement
Downloads
| Hioki DT4200 series brochure |  (10.6 MB) | Download |
