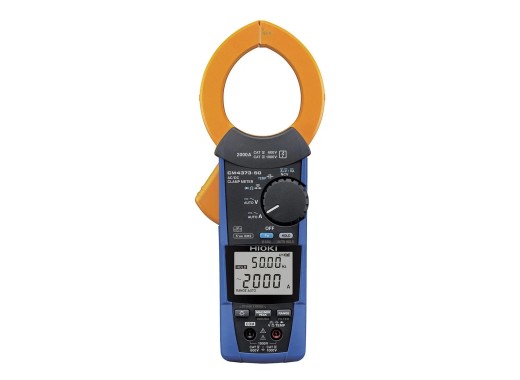

Hioki CM4373-50 current clamp
Details
The Hioki CM4373-50 is an AC/DC current clamp with a jaw diameter of 55mm. The clamp can measure AC and DC current up to 2000A, voltage up to 1000V (CAT III rating), measure resistance and capacitance, and check continuity in the 10Hz to 100Hz range. The CM4373-50 can also be used to directly measure DC power. It is perfect for electricians looking for a compact, reliable device that can be used for everyday field work. Using the optional Hioki Z3210 Bluetooth adapter, the clamp can log readings to a device.
Furthermore, with the optional P2010 high voltage leads, the CM4373-50 can be used to enable DC voltage measurements of up to 2000V (CAT III rating).
Model overview
| Model | CM4371-50 | CM4373-50 |
|---|---|---|
| Max. current | 600 A | 2000 A |
| Current resolution | 0.01 A - 0.1 A | 0.1 A - 1 A |
| Jaw diameter | 33 mm | 55 mm |
| Price |
Specifications
| Display resolution | 6000 count |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Max. resistance | 6 MΩ |
| Max. capacitance | 1 mF |
| Frequency | 9.999 Hz to 999.9 Hz |
| Temperature | -40 - 400 ℃ |
| Other functions | DC power, diode, Continuity, Min/Max record, Peak/Data hold, Auto power-off, Automatic AC/DC detection, back light, zero adjustment, low-pass filter |
| IP rating | IP54 |
| Power supply | LR03 alkaline battery |
| True-RMS | Yes |
| Data logging | Data logging optional (With the Z3210 adapter) |
| Connectivity | Bluetooth (optional) |
| Dimensions | 65 x 250 x 35 mm |
| Weight | 530 g |
Accessories
The Hioki CM4373-50 comes with:
- Carrying case
- L9300 Test leads
- 2 × AAA (LR03) batteries
Pros and cons
- Can measure DC power
- Optional Bluetooth communication with Z3210 adapter
Downloads
| Hioki CM4370 series - User manual |  (8.01 MB) | Download |
| Hioki clamp meter - datasheet | (9.71 MB) | Download |
