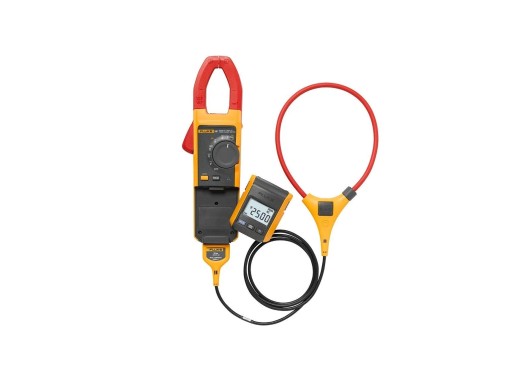

Fluke 381 clamp meter
Details
The Fluke 381 True-RMS clamp meter measures AC/DC current. The clamp can measure up to 1000A AC/DC, with a resolution of 0.1A. to large conductors in narrow spaces. The Fluke 381 has a detachable display with a wireless range up to 10m, meaning you can read measurements from a safe distance or awkward locations. This allows you to perform jobs normally meant for multiple people alone. The Fluke 381 also has an additional iFlex loop for measuring in tight spaces or large objects, as it can be easily detached and reattached arround object. While using this loop, the measurement range is increased up to 2500A AC.
Specifications
| Bandwidth (clamp / iFlex) | 999,9 A / 2500 A |
| Resolution (clamp / iFlex) | 0.1 A / 1 A |
| Max. AC voltage | 1000 V |
| Max. DC voltage | 1000 V |
| Display resolution | 6000 counts |
| Max. Resistance | 60.00 kΩ |
| Capacitance range | 1 - 1000 μF |
| Jaw opening | 34 mm |
| Power supply | AAA battery x 3 (Clamp meter)
AAA battery x 2 (display) |
| True-RMS | Yes |
| Dimensions | 277 x 88 x 43 mm |
| Weight | 350 g |
Accessories
The Fluke 381 comes by default with:
- 1x iFlex flexible current probe
- 1x Carrying case
- 1x TL75 test leads
- 5x AAA batteries
Pros and cons
- Detachable display
- iFlex loop
Downloads
| Fluke 381 user manual |  (1.12 MB) | Download |
| Fluke 381 datasheet | (125.04 KB) | Download |
