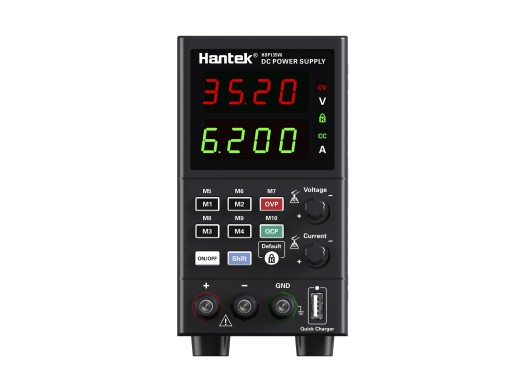

The Hantek HDP135V6S is a programmable single channel DC power supply that features an ouput power of 210 W. This power supply has an output voltage of 35 V and an ouput current of 6 A with a high resolution up to 10mV / 1mA. The power supply can be used as constant voltage (CV) or a constant current (CC) source.
The HDP135V6S has a four digit display to show the current and the voltage and it features an ouput on/off switch. Furthermore it has over voltage, over current, overload, overheating and short circuit protection functions.
The power supply has a standard 18W USB quick charging function and it supports a variety of quick charging protocols.
There are 10 presets available to save different voltage and current settings. It includes a RS232 port that can be controlled through SCPI or Windows software.
Software for the HDP135V6S and videos on the use of the software via RS232 can be found here.
Model overview
Hantek offers two models in the HDP135V6 series, which differ in the communication interface.
| Model | HDP135V6A
| HDP135V6S
|
|---|
| Communication interface |
None |
RS232 |
| Price |
78.51
€78.51
Excl. VAT
|
99.17
€99.17
Excl. VAT
|
Specifications
| Total power | 210 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 35 V |
| Current range | 0 - 6 A |
| Resolution | 10mV/1mA |
| Ripple | 10 mVrms |
| Protection | OPP, OCP, OVP, OTP |
| Display | 4 digits current and voltage |
| Dimensions | 260 x 160 x 85 mm |
| Weight | 2.2 kg |
Accessories
The HDP135V6S is delivered with:
- 2x test line with alligator clip
- 1x power cord
Pros and cons
- USB quickcharge
- RS232 port
Downloads
(232.71 KB)
