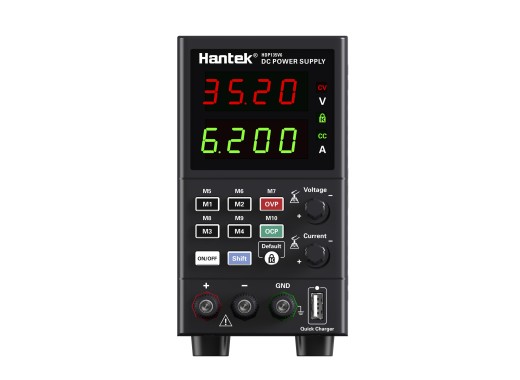

The Hantek HDP135V6A is a single channel DC power supply that features an output power of 210 W. This power supply has an output voltage of 35 V and an output current of 6 A with a high resolution up to 10mV / 1mA. The power supply can be used as constant voltage (CV) or a constant current (CC) source.
The HDP135V6A has a four digit display to show the current and the voltage and it features an output on/off switch. Furthermore it has over voltage, over current, overload, overheating and short circuit protection functions.
The power supply has a standard 18W USB quick charging function and it supports a variety of quick charging protocols.
There are 10 presets available to save different voltage and current settings.
Model overview
Hantek offers two models in the HDP135V6 series, which differ in the communication interface.
| Model | HDP135V6A
| HDP135V6S
|
|---|
| Communication interface |
None |
RS232 |
| Price |
78.51
€78.51
Excl. VAT
|
99.17
€99.17
Excl. VAT
|
Specifications
| Total power | 210 W |
| Outputs | 1 |
| Output switch | Yes |
| Voltage range | 0 - 35 V |
| Current range | 0 - 6 A |
| Resolution | 10mV/1mA |
| Ripple | 10 mVrms |
| Protection | OPP, OCP, OVP, OTP |
| Display | 4 digits current and voltage |
| Dimensions | 260 x 160 x 85 mm |
| Weight | 2.2 kg |
Accessories
The HDP135V6A is delivered with:
- 2x test line with alligator clip
- 1x power cord
Downloads
(232.71 KB)
