Hantek DSO8202E oscilloscope
Details

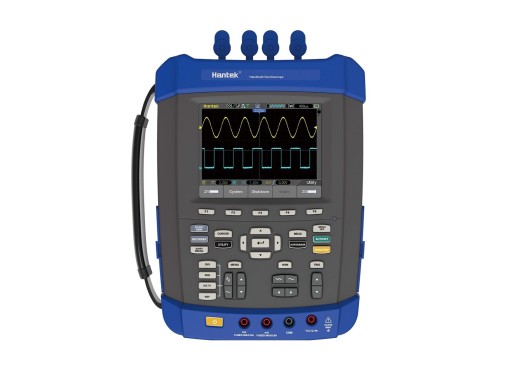

The Hantek DSO8202E is an oscilloscope, recorder, multimeter, spectrum Analyser, frequency counter and arbitrary waveform generator all in one handheld device. As an oscilloscope it has a bandwidth of 200MHz, 2Mpts memory depth and a 1GS/s sample rate. As a multimeter the display resolution is 6000 counts or 3⅚ digits and it can measure AC/DC voltage, AC/DC current, resistance, capacitance and continuity/diode. The arbitrary waveform generator has a maximum 25MHz bandwidth and 12 bit vertical resolution. It is also IP51 rated for dust, drip and is shake proof to withstand harsh environments. The DSO8202E also features 5.6 inch TFT LCD display with a resolution of 640 x 480 pixels, a battery indicator and replaceable 18650 batteries in addition to a tripod mounting hole, flashlight and replaceable BNC safety joints.
Specifications
| Oscilloscope | |
| Bandwidth | 200 MHz |
| Channels | 2 |
| Memory depth | 2 Mpts (divided by number of active channels) |
| Sample rate | 1 GS/s (divided by number of active channels) |
| Vertical resolution | 8 bits |
| Vertical scale | 2 mV/div - 100 V/div |
| Horizontal scale | 2 ns/div - 2000 s/div |
| Multimeter | |
| Display resolution | 6000 counts, 3 ⅚ digits |
| Max. AC voltage | 600 V |
| Max. DC voltage | 800 V |
| Max. AC current | 10 A (20 A for 30s) |
| Max. DC current | 10 A (20 A for 30s |
| Max. resistance | 60 MΩ |
| Max. capacitance | 400 µF |
| Other functions | Diode, Continuity, Min/Max record, Peak/Data hold, Auto power-off |
| Waveform generator | |
| Bandwidth | 1 Hz - 25 MHz |
| Vertical resolution | 12 bits |
| Amplitude range | 3.5 Vpp |
| General | |
| Interfaces | USB Host, USB Device, Pass/Fail, Trigger Out |
| Display | 5.6" TFT LCD (640x480) |
| Dimensions | 260 x 220 x 75 mm |
| Weight | 2.5 kg |
Accessories
The Hantek DSO8202E will be delivered including:
- Carrying bag
- BNC safety joints
- USB cable
- Test leads
- BNC cable
- Velcro hanger
- Power cord
- 2x passive probes
Pros and cons
- Six in one device
- Replaceable batteries
- Jack of all trades, master of none
