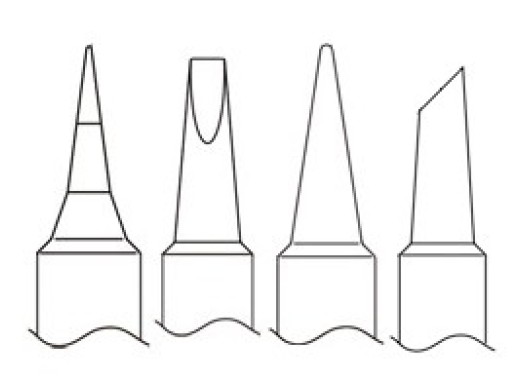

Hakko T39 active soldering tips suitable for the
Hakko FX-971 and
Hakko FX-972 soldering stations.
Quick navigation
Conical
Conical bent
Chisel
Bevel
Spoon
Knife
Blade
Special applications
Conical
| Model |
Radius tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-B02 |
0.2 |
7.5 |
16
€16.00
Excl. VAT
|
|
| T39-B05 |
0.5 |
10.0 |
18
€18.00
Excl. VAT
|
|
| T39-B07 |
0.7 |
5.0 |
16
€16.00
Excl. VAT
|
|
| T39-BL02 |
0.2 |
12.0 |
16
€16.00
Excl. VAT
|
|
| T39-BLL02 |
0.2 |
15.0 |
18
€18.00
Excl. VAT
|
|
| T39-BS02 |
0.2 |
14.0 |
18
€18.00
Excl. VAT
|
|
| T39-S03 |
0.3 |
16.5 |
18
€18.00
Excl. VAT
|
|
▲ Back to top
Conical thin
| Model |
Radius tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-I02 |
0.2 |
9.5 |
18
€18.00
Excl. VAT
|
|
| T39-IL02 |
0.2 |
12.5 |
19
€19.00
Excl. VAT
|
|
| T39-ILS015 |
0.15 |
13.5 |
19
€19.00
Excl. VAT
|
|
▲ Back to top
Conical bent
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-J02 |
R0.2 |
3.5 + 11.0 |
20
€20.00
Excl. VAT
|
|
| T39-JL02 |
R0.2 |
7.5 + 9.0 |
20
€20.00
Excl. VAT
|
|
| T39-JS02 |
R0.2 |
1.6 + 8.0 |
20
€20.00
Excl. VAT
|
|
| T39-JD08 |
0.8 x 0.5 |
3.5 + 11.0 |
20
€20.00
Excl. VAT
|
|
| T39-JD14 |
1.4 x 0.8 |
6.0 + 6.0 |
20
€20.00
Excl. VAT
|
|
| T39-JD16 |
1.6 x 0.6 |
6.0 + 4.5 |
20
€20.00
Excl. VAT
|
|
▲ Back to top
Chisel
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-D08 |
0.8 x 0.5 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D12 |
1.2 x 0.5 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D16 |
1.6 x 0.5 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D24 |
2.4 x 0.5 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D32 |
3.2 x 0.8 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D4 |
4.0 x 0.8 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-D52 |
5.2 x 1.2 |
10.0 |
16
€16.00
Excl. VAT
|
|
| T39-DL32 |
3.2 x 0.8 |
16.0 |
18
€18.00
Excl. VAT
|
|
| T39-DL4 |
4.0 x 1.0 |
16.0 |
19
€19.00
Excl. VAT
|
|
| T39-DL52 |
5.2 x 1.2 |
16.0 |
18
€18.00
Excl. VAT
|
|
| T39-DLS15 |
1.5 x 1.2 |
12.0 |
25
€25.00
Excl. VAT
|
|
| T39-DS24 |
2.4 x 0.5 |
6.0 |
19
€19.00
Excl. VAT
|
|
| T39-DS32 |
3.2 x 0.5 |
5.0 |
19
€19.00
Excl. VAT
|
|
| T39-DS4 |
4.0 x 0.5 |
6.0 |
19
€19.00
Excl. VAT
|
|
| T39-DS52 |
5.2 x 0.5 |
6.0 |
19
€19.00
Excl. VAT
|
|
▲ Back to top
Bevel
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Angle bevel |
Price |
Stock |
| T39-BC1020 |
1.0 x 2.0 |
11.5 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-BC1530 |
1.5 x 3.0 |
15.0 |
60° |
18
€18.00
Excl. VAT
|
|
| T39-BC2040 |
2.0 x 4.0 |
15.0 |
60° |
18
€18.00
Excl. VAT
|
|
| T39-BC2535 |
2.5 x 3.5 |
11.5 |
45° |
19
€19.00
Excl. VAT
|
|
| T39-BC3065 |
3.0 x 6.5 |
15.0 |
60° |
18
€18.00
Excl. VAT
|
|
| T39-BC3545 |
3.5 x 4.5 |
10.0 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-BCF1020 * |
1.0 x 2.0 |
11.5 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-BCF2535 * |
2.5 x 3.5 |
11.5 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-BCF3545 * |
3.5 x 4.5 |
10.0 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-C1020 |
1.0 x 2.0 |
10.5 |
60° |
17
€17.00
Excl. VAT
|
|
| T39-C1025 |
1.0 x 2.5 |
10.5 |
60° |
17
€17.00
Excl. VAT
|
|
| T39-C4055 |
4.0 x 5.5 |
11.5 |
45° |
17
€17.00
Excl. VAT
|
|
| T39-CF4055 * |
4.0 x 5.5 |
11.5 |
45° |
17
€17.00
Excl. VAT
|
|
*These soldering tips are tinned on the bevel face
▲ Back to top
Spoon
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-BCM2535 |
2.5 x 3.5 |
11.5 |
20
€20.00
Excl. VAT
|
|
| T39-BCM3545 |
3.5 x 4.5 |
10.0 |
20
€20.00
Excl. VAT
|
|
▲ Back to top
Knife
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-K |
2.0 x 5.0 |
15.0 |
25
€25.00
Excl. VAT
|
|
| T39-KF |
2.4 x 5.0 |
15.0 |
25
€25.00
Excl. VAT
|
|
| T39-KL |
1.5 x 5.0 |
11.0 |
25
€25.00
Excl. VAT
|
|
| T39-KR |
1.5 x 5.0 |
11.0 |
25
€25.00
Excl. VAT
|
|
| T39-KU |
1.2 x 3.0 |
11.0 |
25
€25.00
Excl. VAT
|
|
▲ Back to top
Blade
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-SP104 |
10.4 x 2.0 |
7.2 - 9.5 |
56
€56.00
Excl. VAT
|
|
| T39-SP157 |
15.7 x 2.0 |
7.2 - 9.5 |
59
€59.00
Excl. VAT
|
|
| T39-SP212 |
21.2 x 2.0 |
7.2 - 9.5 |
66.5
€66.50
Excl. VAT
|
|
▲ Back to top
Special applications
| Model |
Dimensions tip (mm) |
Tip length (mm) |
Price |
Stock |
| T39-BCR1235 |
1.2 - 3.5 |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR12 |
1.2 ; 90° |
11.5 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR16 |
1.6 ; 90° |
11.5 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR24 |
2.4 ; 90° |
11.5 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR32 |
3.2 ; 90° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR4 |
4.0 ; 90° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-BCR52 |
5.2 ; 90° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR12 |
1.2 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR16 |
1.6 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR24 |
2.4 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR32 |
3.2 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR4 |
4.0 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
| T39-DR52 |
5.2 ; 120° |
10.0 |
29.5
€29.50
Excl. VAT
|
|
▲ Back to top
