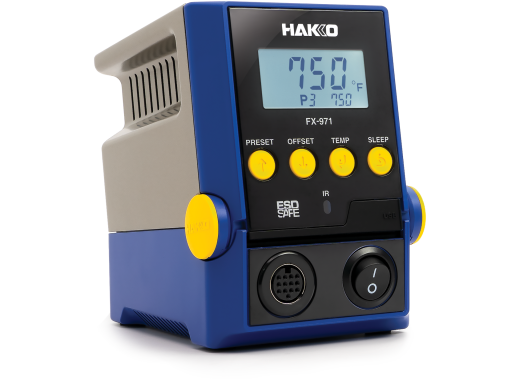

Hakko FX-971 digital soldering station
Promotion! Apply this code in the shopping cart to get 10% discount: HAKKO10
Details
The Hakko FX-971 is a digital soldering station and the new version of the FX-951. This is a professional soldering station with a power of 100 watt. Compared to the FX-951, the FX-971 has a new composite tip with improved sensor sensitivity and a design that smoothly transfers the heat from the heater to the tip. The composite element and sensor guarantee rapid heating and thermal recovery. The accuracy of the tip temperature is now ± 3 ℃.
The temperature can easily be adjusted between 50 and 450 ℃. The station has a high visible display that shows the preset setting and the tip sensor and preset temperature. Furthermore the display angle is adjustable for easy viewing.
The built-in sensor in the tip (not included) makes it possible to use auto-sleep and auto-shutoff without connecting the station and the iron holder.
The soldering station can also be connected to a PC with the dedicated software, with which the tip set temperature and the temperature history of the tip can be recorded. Furthermore calibration/correction is possible with the PC software.
For the soldering station including soldering iron and iron holder, click here.
Model overview
We offer two models in the Hakko FX-900 series, which differ in power, channels and available soldering irons.| Model | FX-971 | FX-972 |
|---|---|---|
| Power | 100 W | 200 W |
| Channels | 1 | 2 |
| Available soldering irons | 4 | 8 |
| Price |
Specifications
| Power | 100 W |
| Temperature range | 50 ℃ - 450 ℃ |
| Temperature accuracy | ± 3 ℃ |
| Tip system | Active |
| ESD safe | Yes |
| Tip to earth resistance/voltage | 2 Ω / 2 mV |
| Automatic standby | Yes |
| Dimensions | 93 x 126 x 123 mm |
| Weight | 1.2 kg |
Compatible products
| Description | Soldering iron only | Including soldering iron holder FH-215 | Soldering iron FX-9701 | FX-9701-81 | FX-9701-811 |
|---|---|---|
| N2 soldering iron FX-9702 | FX-9702-81 | FX-9702-811 |
| Micro soldering iron FX-9703 | FX-9703-81 | FX-9703-811 |
| Micro N2 soldering iron FX-9704 | FX-9704-81 | FX-9704-811 |
Accessories
The Hakko FX-971 comes with the following accessories:- Station
- USB cable
- Power cord
Pros and cons
- Large choice in soldering irons
- Computer software
- No soldering iron or iron holder included
Downloads
| Hakko FX-971 instruction manual |  (5.71 MB) | Download |
