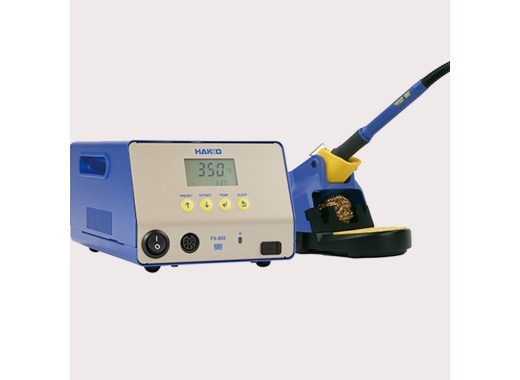

The compact Hakko FX-805 heavy duty soldering station is a professional station with a power of 400 watt that is suitable for soldering application that require large soldering tips and high power. The composite element and sensor guarantee rapid heating and thermal recovery. The temperature can easily be adjusted between 50 and 500 ℃. The supported Hakko T37 soldering tip serie includes a 10 mm soldering tip which is very useful in utilizing the very high power of this soldering station. A special v-groove chisel soldering tip is also available that can be used to quickly solder through hole. This soldering station can also be connected via usb to a pc and allows for data logging and display via Hakko's supported software. The FX-805 soldering station uses the FX-8004 handpiece which has a built-in sensor to detect when the handpiece is set in the holder and can communicate wirelessly with the station for automatic standby/shut off. There is also no cord needed between the holder and station and therefore allows for free movement of the two only limited by the cord from the soldering iron to the station. The holder enables easy and safe soldering tip replacement.
Beware, there is no soldering tip included in this soldering station! Soldering tips suitable for this soldering station are the Hakko T37 soldering tips. You can find the soldering tips via the blue button at the bottom of this page.
Power | 400 W |
Temperature range | 50 °C - 500 °C |
Tip system | Active |
Tip to earth resistance/voltage | 2 Ω / 2 mV |
Automatic standby | Yes, with sensor detection |
Dimensions | 143 x 107 x 218 mm |
Weight | 3.9 kg |
The Hakko FX-805 comes with the following accessories:
Hakko FX-805 user manual |
(5.54 MB) | Download |
